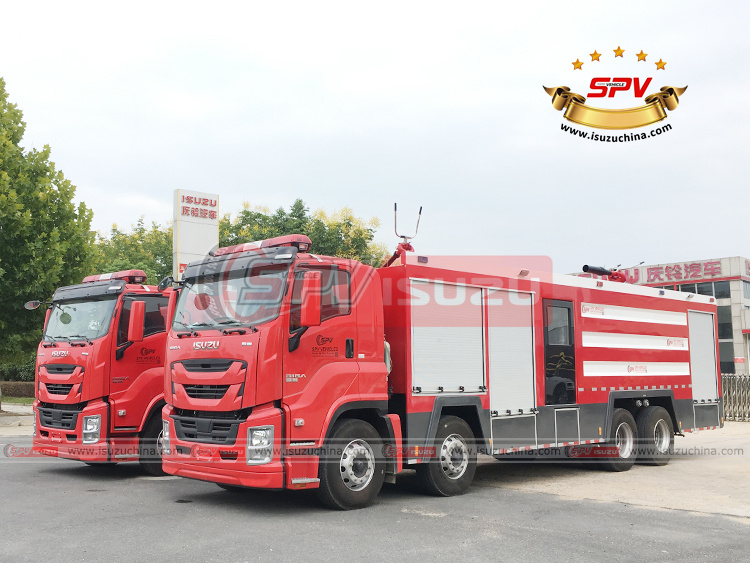

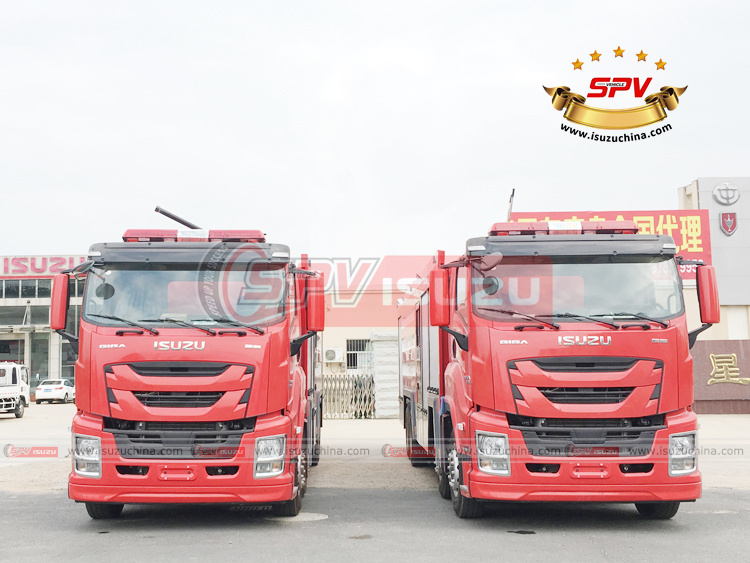

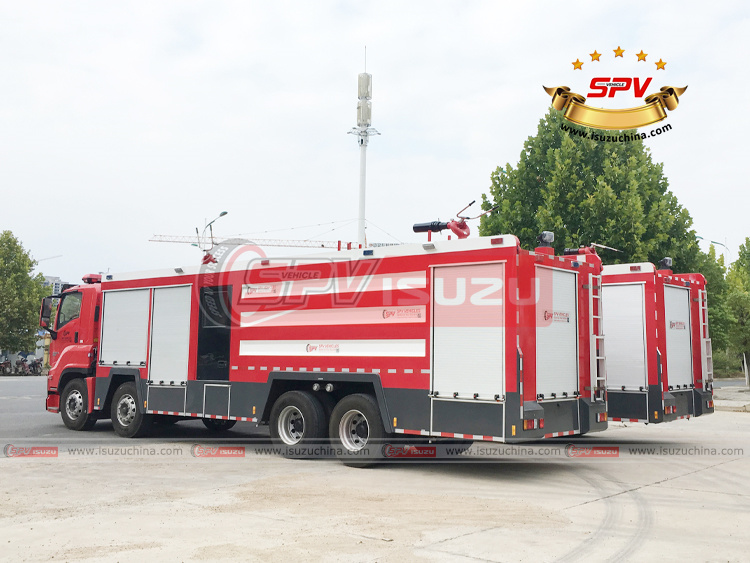

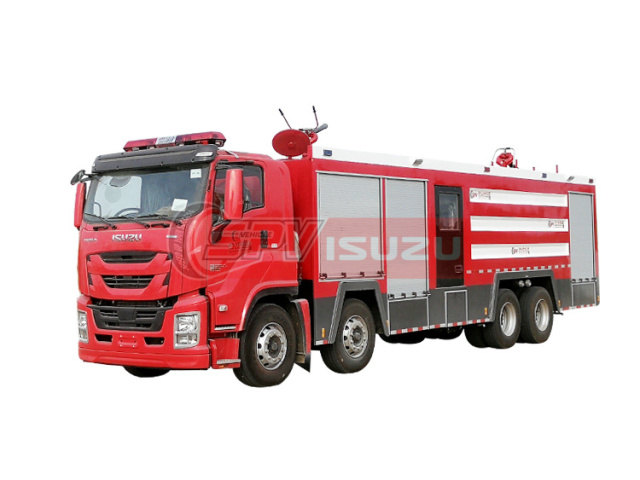

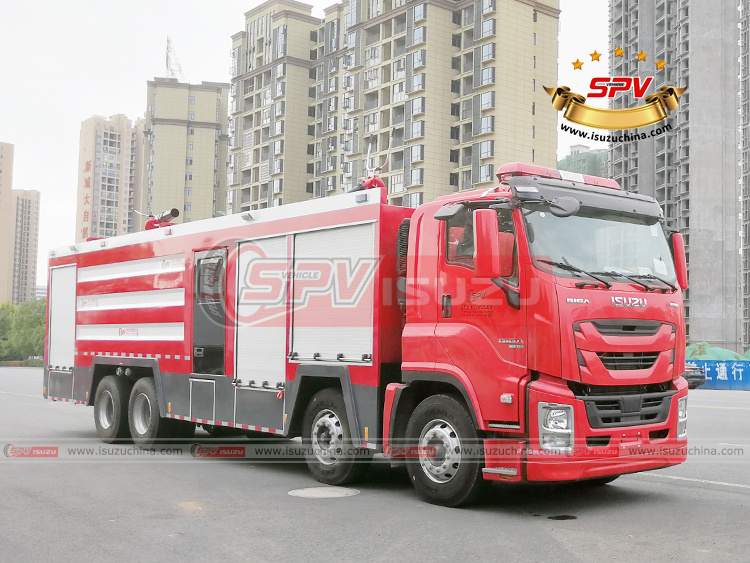

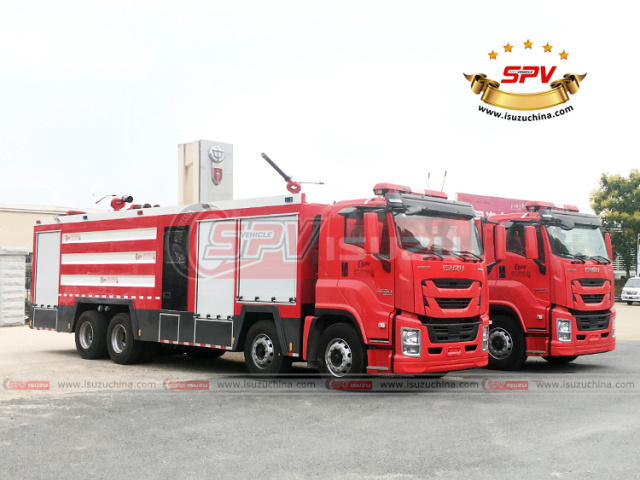

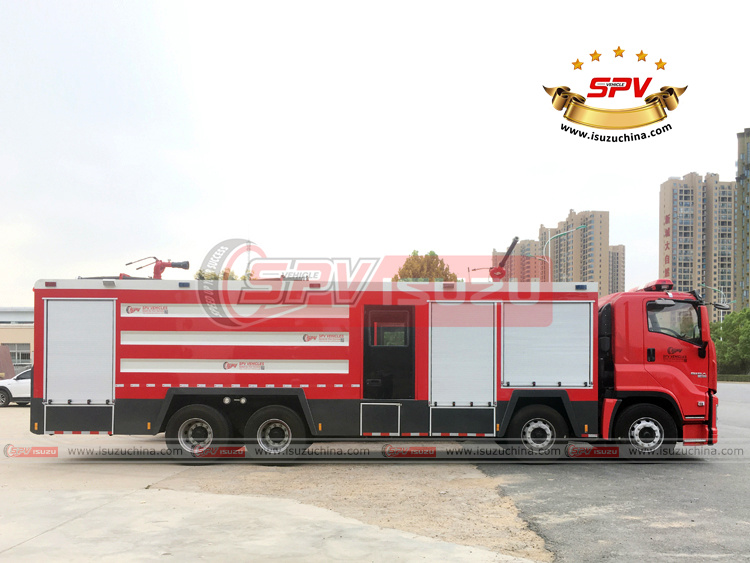

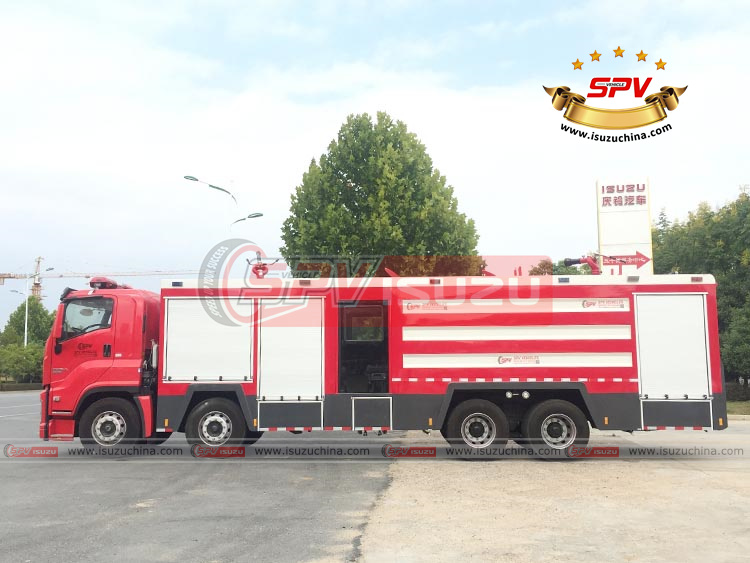

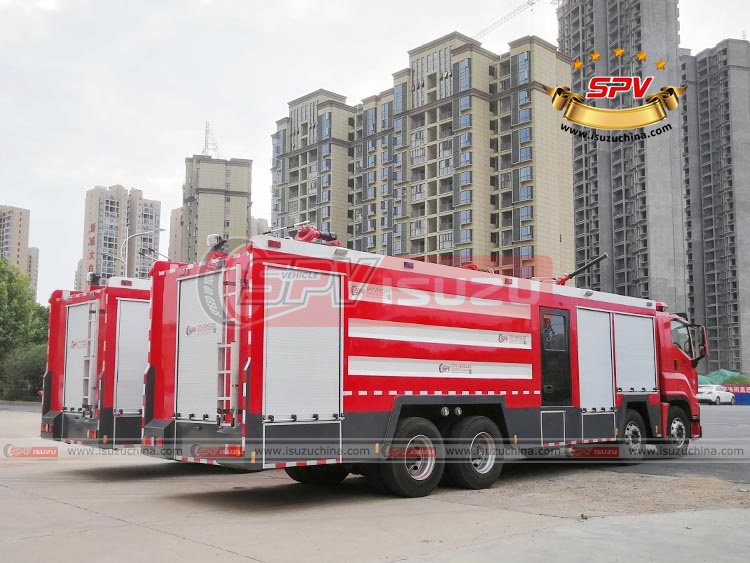

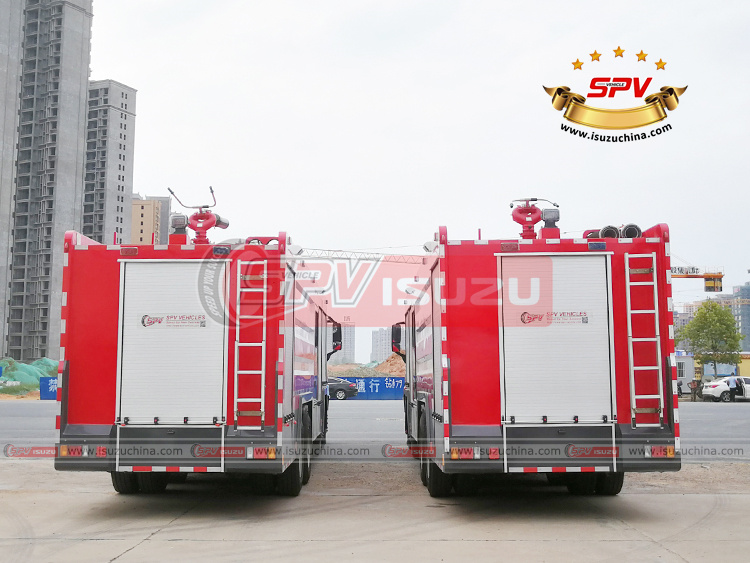

| Dry-Powder Fire Truck ISUZU (17,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 12600 * 2670 * 3890 mm | |
| GVW / Kerb Weight | 42,000 kg / 17,820 kg | |

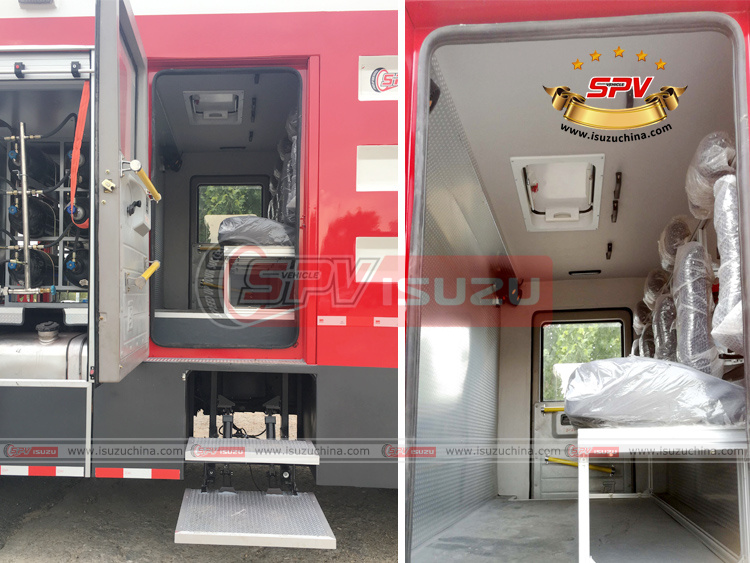

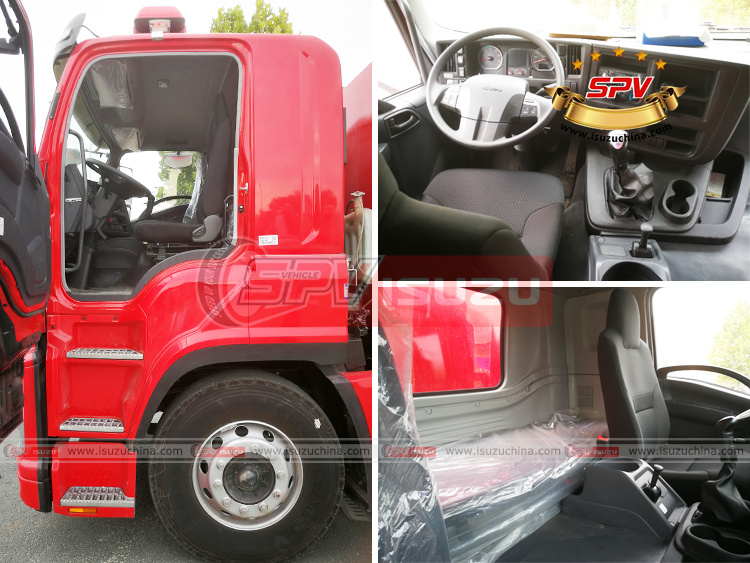

| Cab | Cab Capacity | 2+4 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 6WG1-TCG51 | |
| Power | 460 Ps (338 KW) | |
| Displacement |
15681 ml |
|
| Emission Standard |
Euro V |
|
| Chassis | Drive Type |
8X4, left hand drive |
| Transmission |
12-speed forward, 2 reverse |
|
| No. of Axles |
4 |
|
| Tyre Specification |
315/80R22.5 |
|
| Tyre Number |
12 tyres and 1 spare tyre |
|
| Max Speed |
90 km/h |
|
| Paint |
Metallic paint |
|
| Superstructure |
Water Capacity |
12,000 Litres ( About 3,200 gallons) |
| Foam Capacity |
3,000 litres( About 800 gallons) |
|

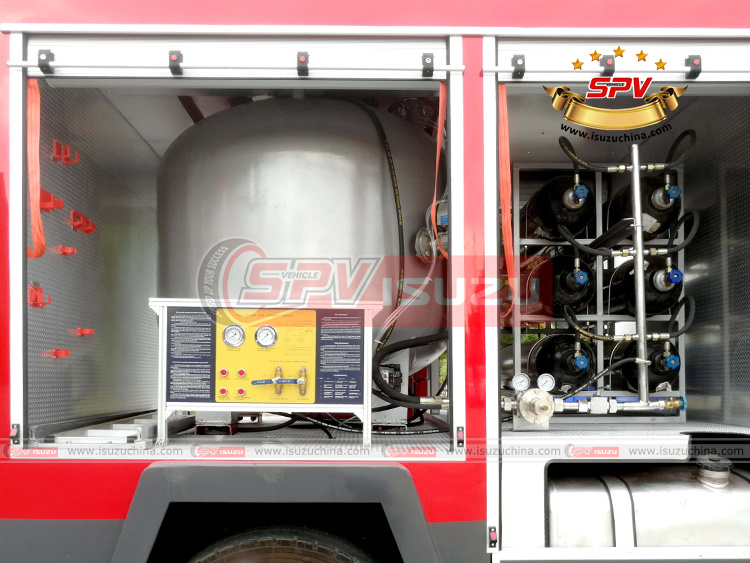

| Dry Powder Tank Capacity |
2,000 Litres (About 500 gallons) |
|
| Tank Material |
water tank: carbon steel foam tank: stainless steel dry powder tank: carbon steel |
|
| Nitrogen Gas Bottle |
70 Litres x 6 pcs |
|

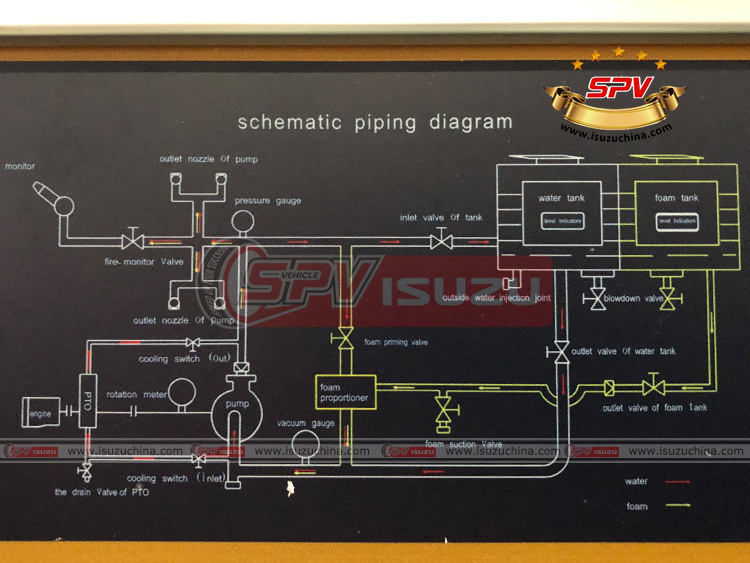

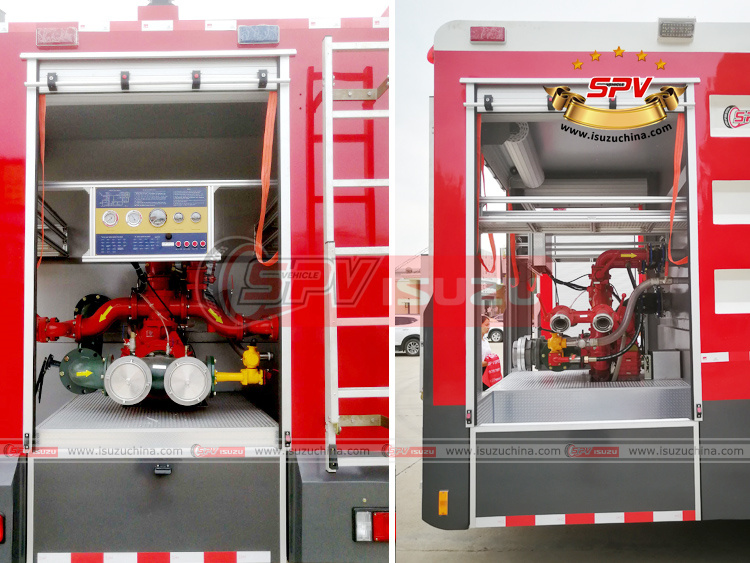

| Fire Pump |
Flow speed:100 L/s Pressure:1.0M Pa |
|
| Fire Cannon |
Flow speed:48 L/s |
|
| Shot |
Water ≥ 60 m Foam ≥ 55 m |
|
| Suction Head |
6 m |
|
| Hose |
High quality, wire strengthened hose, with cooper wire, anti-static |
|
| A series of fire implement tools: suction hose, intake screen, water segregator, siamese (water combiner), fire hose, hose bandage, etc........Details as per below accessory list. |
||
| Optional | Aluminium Alloy Extendable Ladder 9M - 12M, Storz Coupling, British Coupling, etc...... | |
