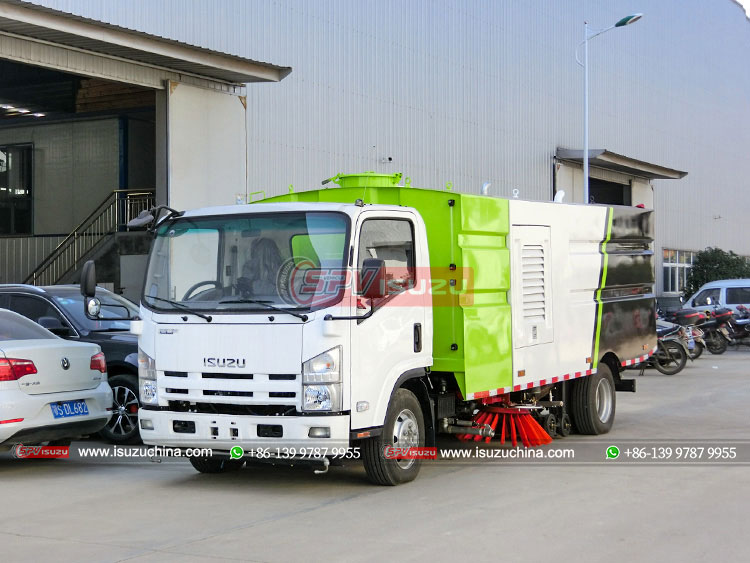

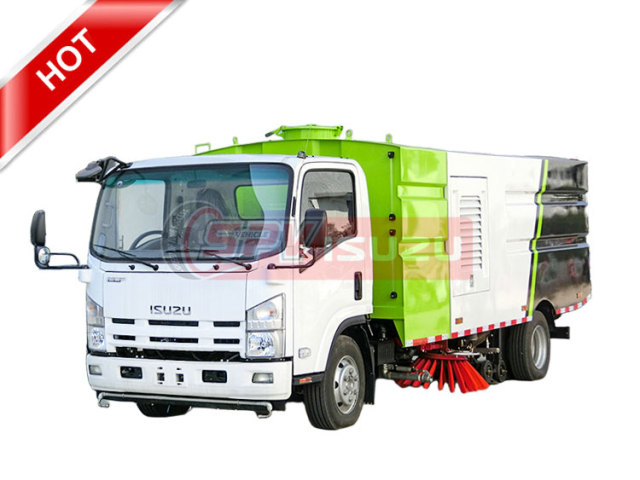

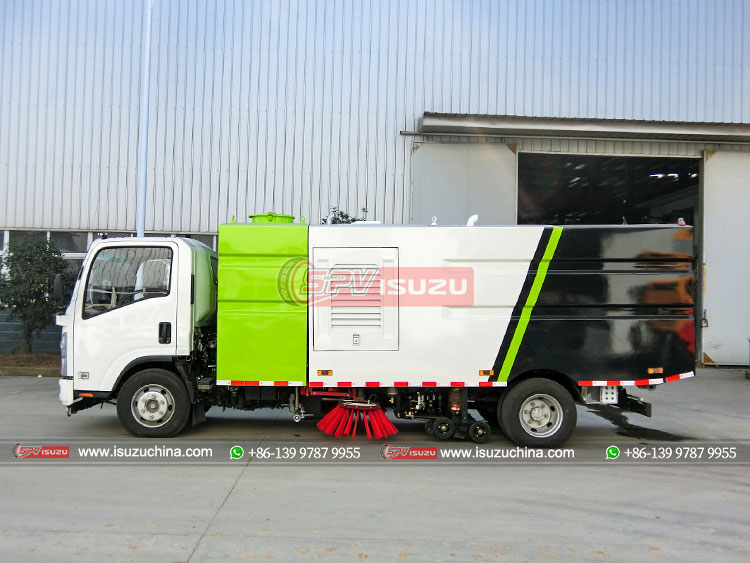

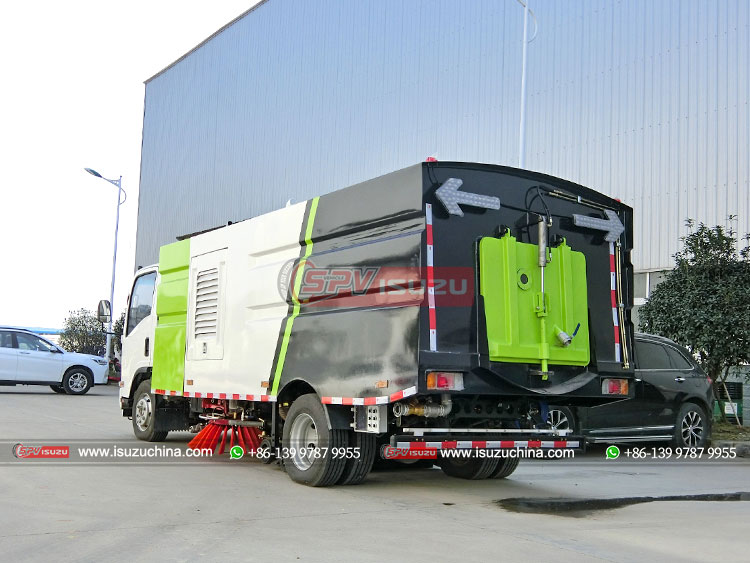

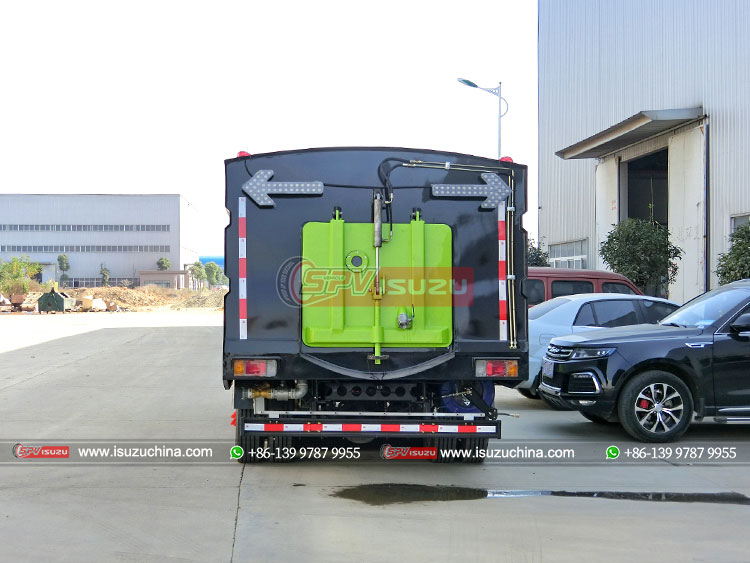

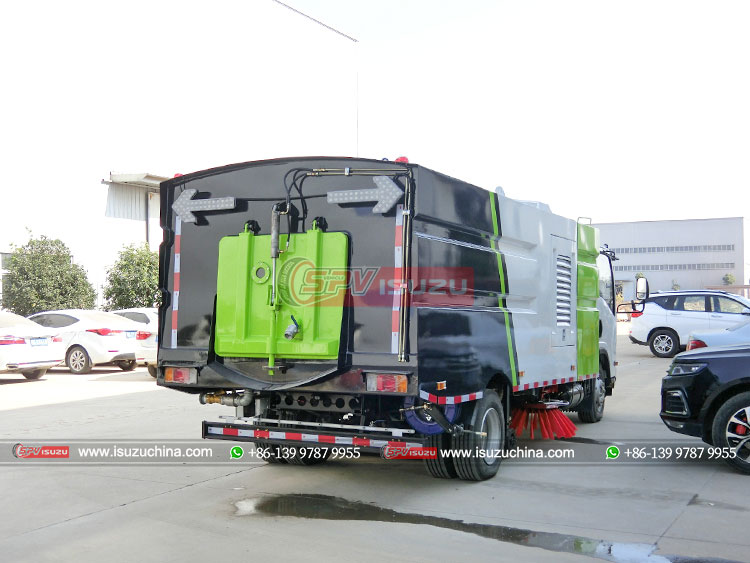

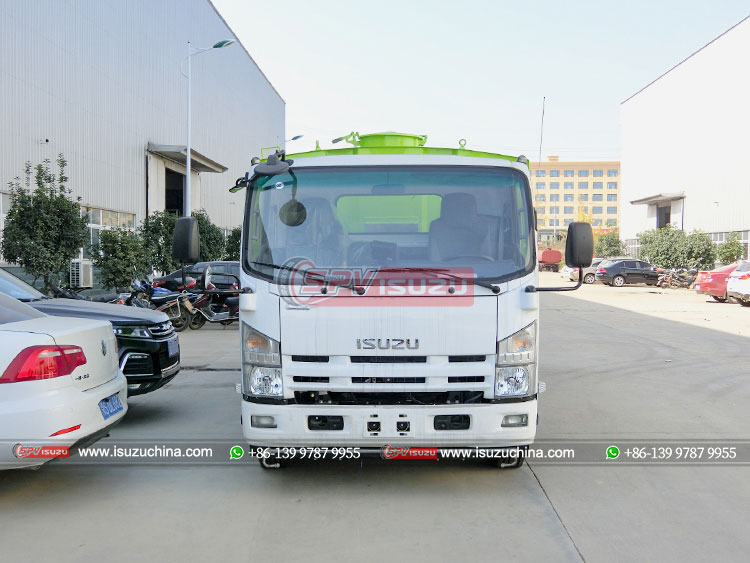

| Urban Cleaning Truck ISUZU ( 6 CBM dustbin & 2 CBM water tank ) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6800 * 2510 * 2600 mm | |
| GVW / Kerb Weight | 10,550kg / 4,770kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 190 Ps (140 KW) / 205 Ps (150 KW) | |
| Displacement | 5893 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU manual, 5 speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 235. 70 R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless Steel |
| Dustbin Material | Stainless Steel | |
| Dustbin Capacity | 6 CBM | |
| Water Tank Capacity | 2 CBM | |
| Sweeping Capacity | 42,000 m³/h | |
| Sweeping Speed | 3-15 km/h | |
| Max Sweeping Width | 2800mm | |
| Brooms | 2 sets at each side | |
| Vacuum |
Created by powerful air blower driven by
auxiliary engine
|
|
| Suctions | Wet suction and dry suction Middle suctions |
|
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional | ** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
