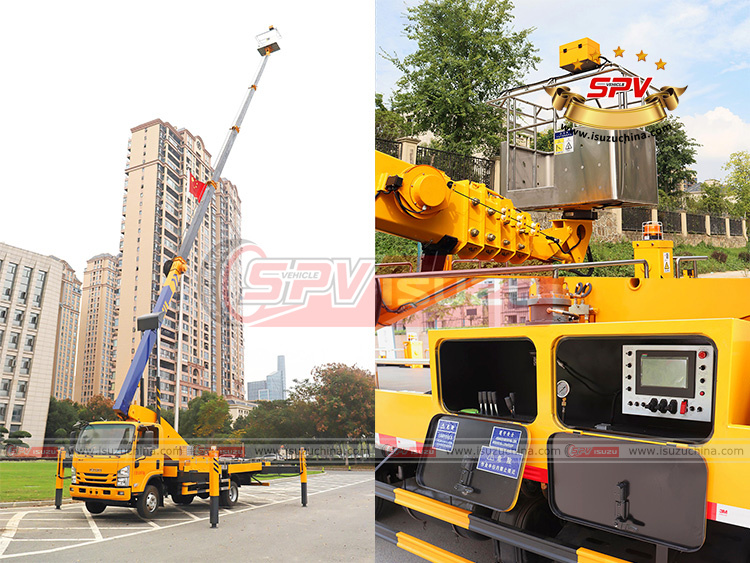

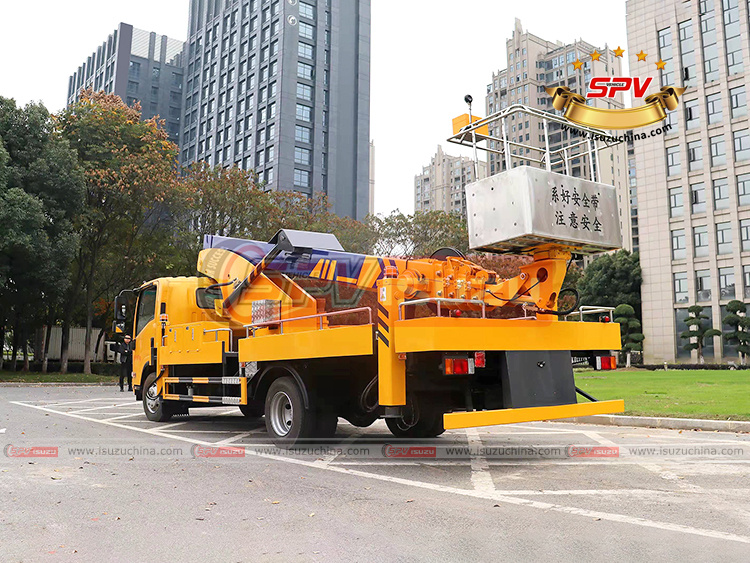

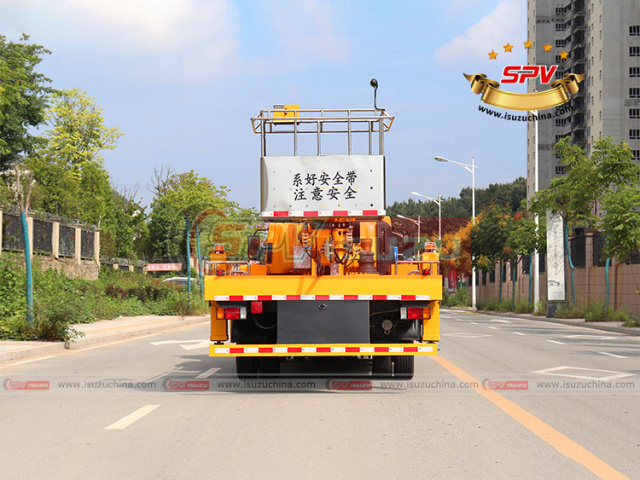

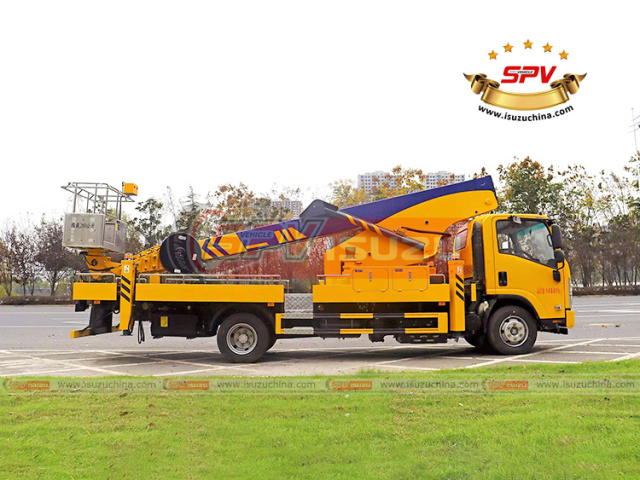

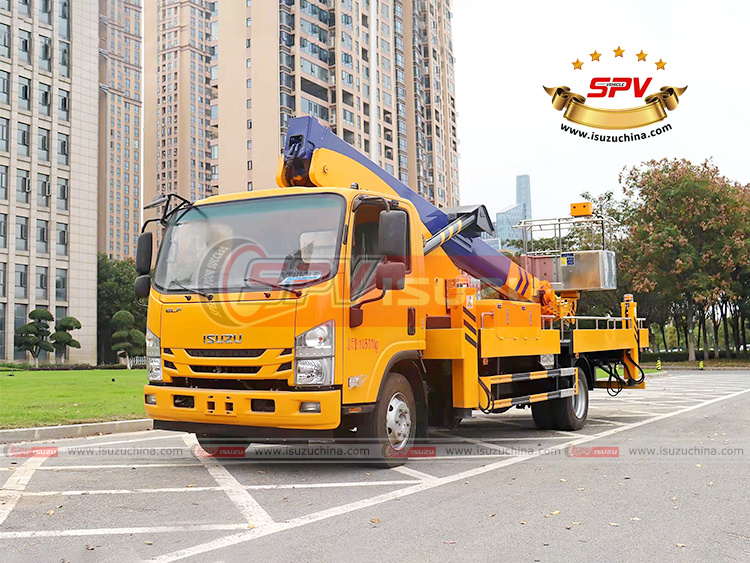

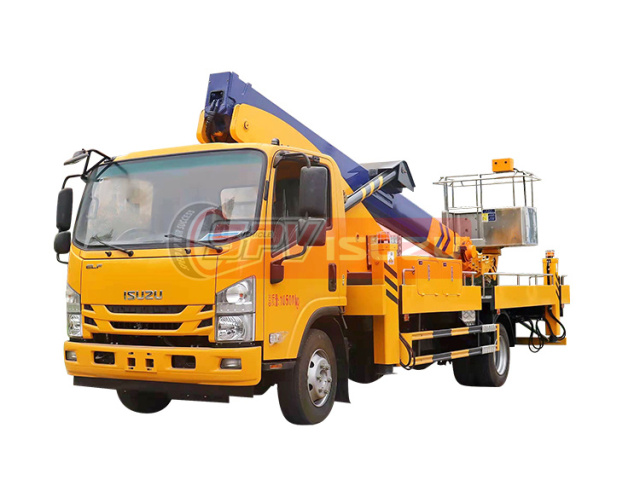

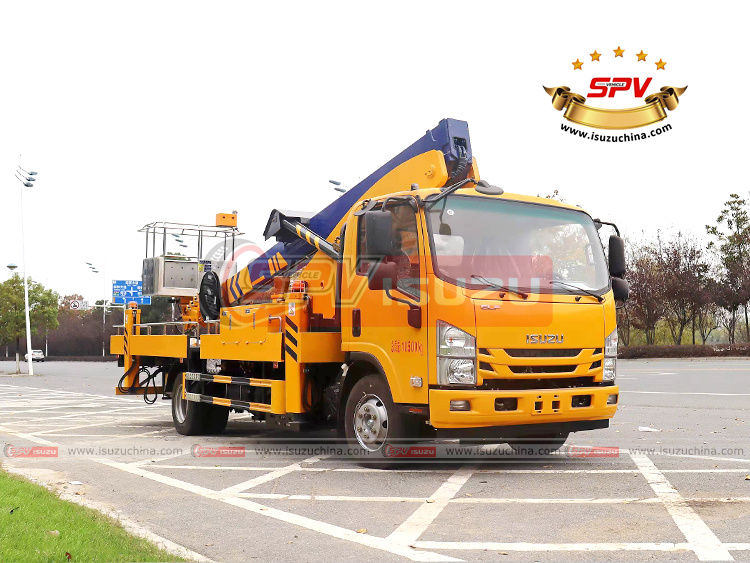

Telescopic Boom Lift Truck ISUZU (28 M)
|
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7550 x 2300 x 3350 mm | |
| GVW / Kerb Weight | 10,550 kg / 7,400 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4KH1-TC51 | |
| Power | 190 Ps (139 KW) | |
| Displacement |
5193 ml |
|
| Emission Standard |
Euro V |
|
| Chassis | Drive Type |
4X2, left hand drive |
| Transmission |
5-forward gears & 1 reverse |
|
| No. of Axles |
2 |
|
| Tyre Specification |
235/70R17.5 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Automative metallic paint |
|
| Superstructure | Cage Rated Capacity |
400 kg |
| Working Height |
28 m |
|
| Beam |
The beam is articulated & telescopic extension type, hydraulic actuated and controlled |
|
| Slewing |
Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. |
|
| Control |
Control both on the ground and remote control in cage |
|
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump | |
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground | |
| Optional | Insulated cage; Wireless remote control system | |
