Function:
Telescopic aerial platform (also called telescopic boom trucks, telescopic boom lifts, lifting platform truck, truck manlift, teles telescopic aerial truck, telescopic working platform, articulated telescopic aerial truck, articulated boom lift, articulated basket picker bucket truck etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, fruit picker lift in farm, cleaning/setting other high aerial works.
SPV ISUZUCHINA telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m, 26-28 mInsulated cage is optional.
Features:
---- ISUZU chassis ensures perfect driving performance;---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);---- Working cage can rotate 90 degree in left and right;---- 4pcs outriggers and front support improve operation stability and safety;---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;---- Wireless remote control system is available.
Specitfication:
|

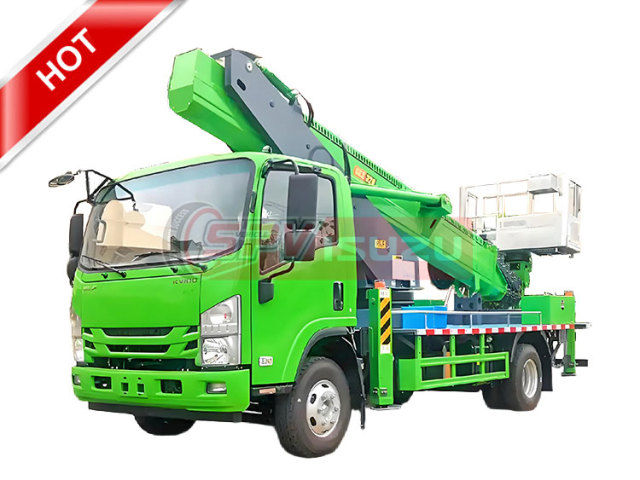

Telescopic Aerial Truck ISUZU KV100 (16 M)
|
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
ISUZU |
| Overall Dimension |
5595 x 2030 x 3150 mm |
| GVW / Kerb Weight |
7,300 kg / 4,300 kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
With air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine |
| Power |
120 Ps (88 KW) |
Displacement
|
2499 ml
|
Emission Standard
|
Euro VI
|
| Chassis |
Drive Type
|
4X2, left hand drive
|
Transmission
|
5-forward gears & 1 reverse
|
No. of Axles
|
2
|
Tyre Specification
|
7.00R16 LT 8PR
|
Tyre Number
|
6 tyres and 1 spare tyre
|
Max Speed
|
100 km/h
|
Paint
|
Automative metallic paint
|
| Superstructure |
Cage Rated Capacity
|
200 kg
|
Working Height
|
28 m
|
Beam
|
The beam is articulated & telescopic extension type, hydraulic actuated and controlled
|
Slewing
|
Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
|
Control
|
Control both on the ground and remote control in cage
|
| Safety Device |
Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump |
| Leveling System |
Hydraulic stabilizer to level the vehicle on uneven ground |
| Optional |
Insulated cage; Wireless remote control system |

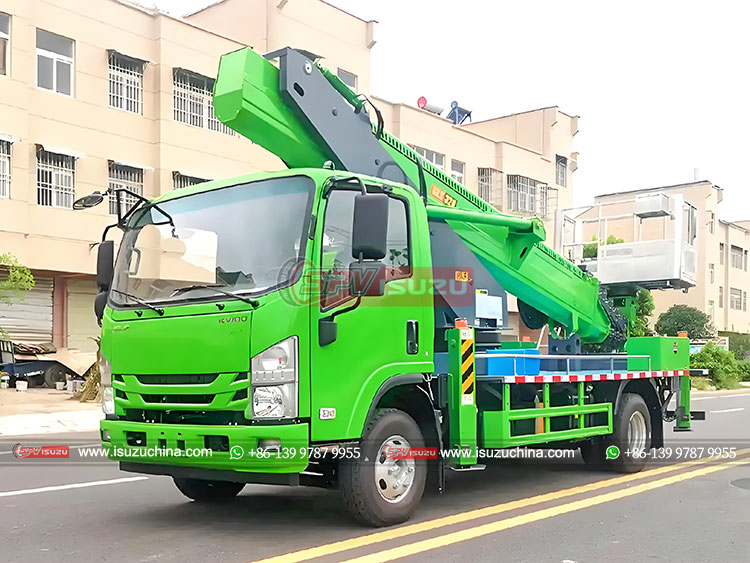

ISUZU Telescopic Aerial Platform Truck - Front Left Side

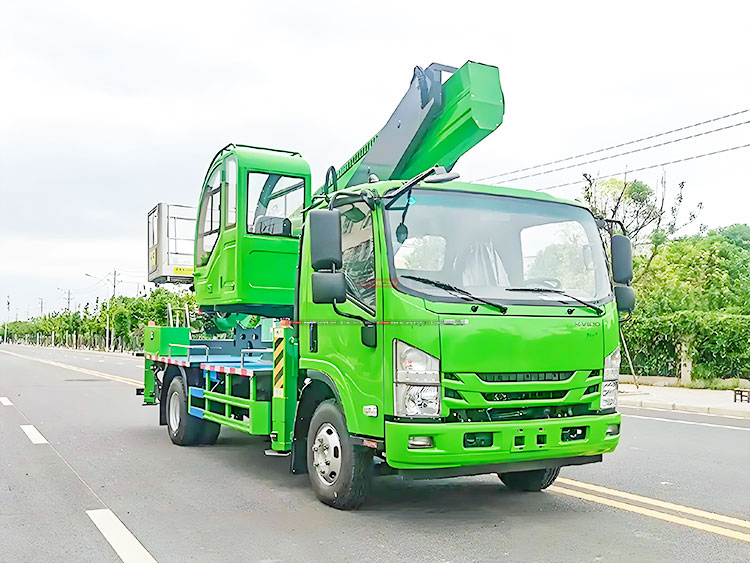

ISUZU 12-18m Telescopic Aerial Platform Truck - Front Right Side

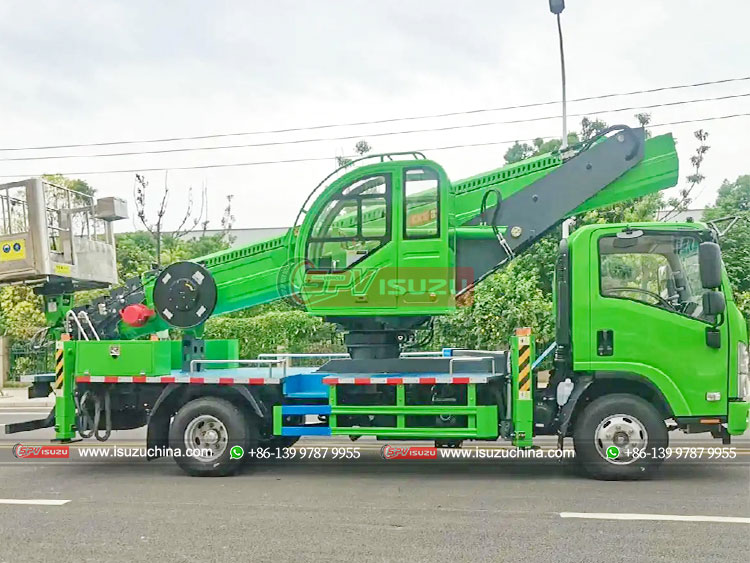

ISUZU Light-duty Aerial Lorry With Operation Cage - Right Side

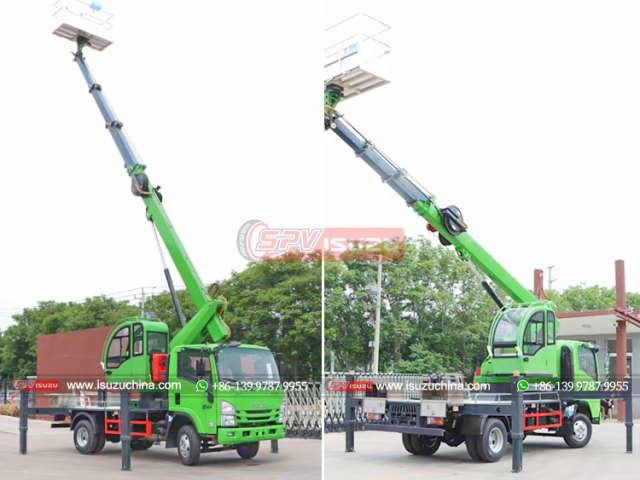

ISUZU KV100 Aerial Lift Truck
