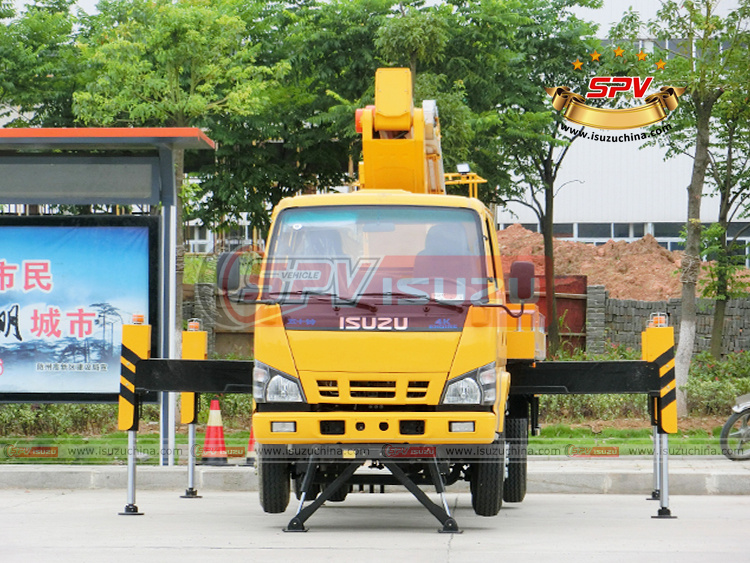

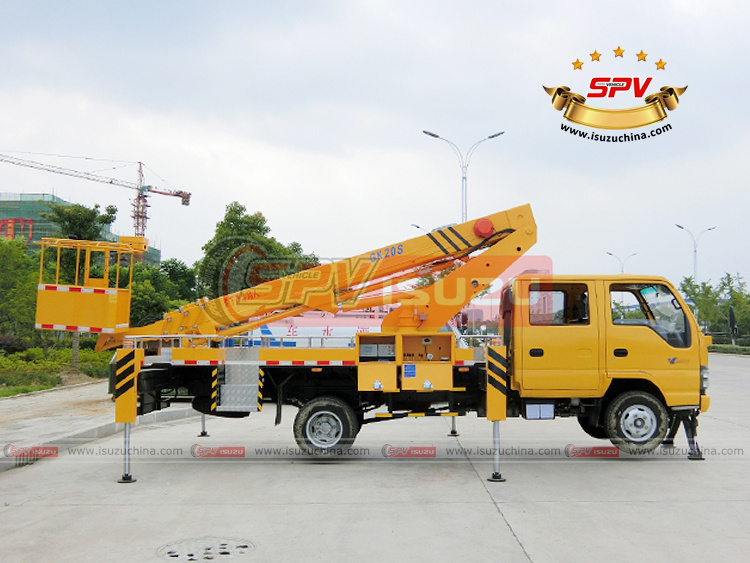

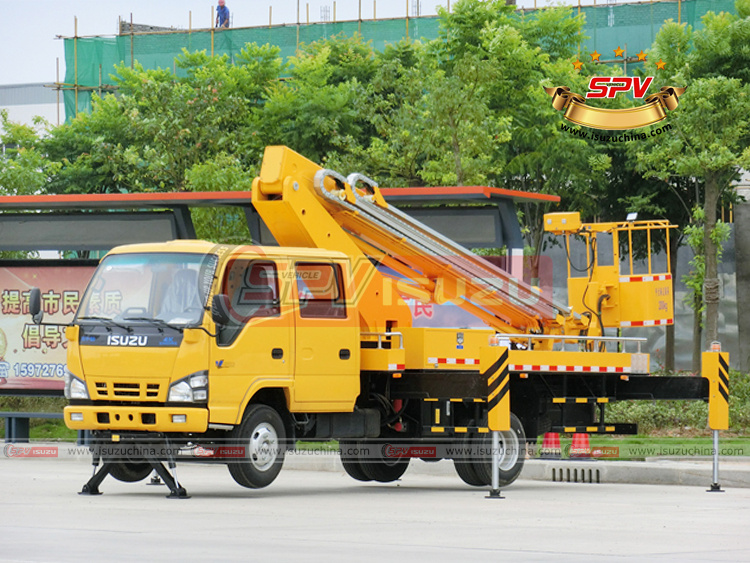

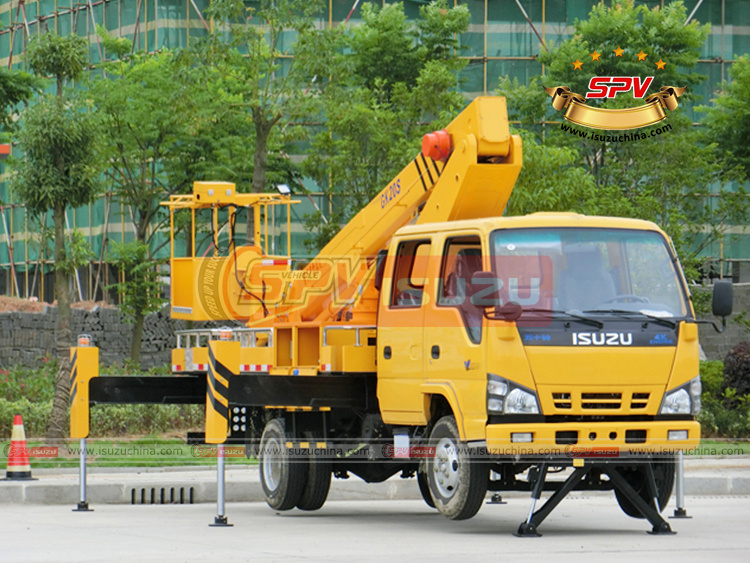

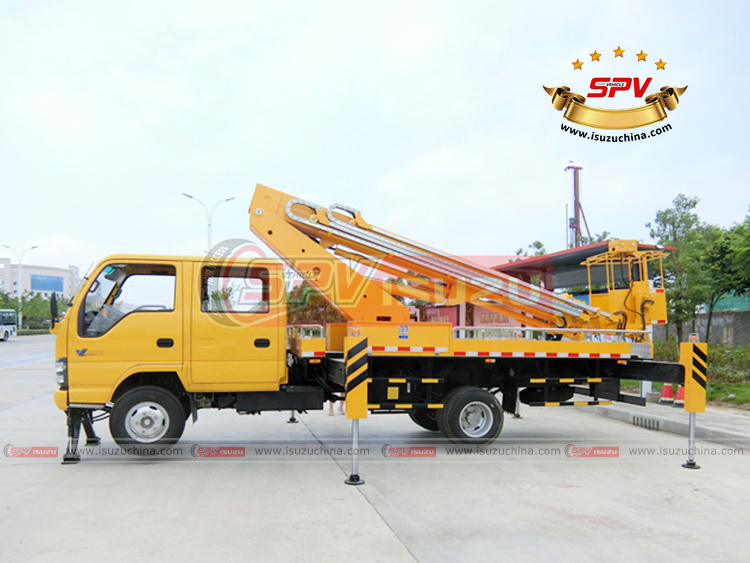

Telescopic Aerial Platform Truck ISUZU (18-20 M)
|
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 8550 x 2100 x 3350 mm | |
| GVW / Kerb Weight | 6,810 kg / 6,485 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4KH1-TCG40 | |
| Power | 120 Ps (88KW) | |
| Displacement |
2999 ml |
|
| Emission Standard |
Euro IV |
|
| Chassis | Drive Type |
4X2, left hand drive |
| Transmission |
ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km |
|
| No. of Axles |
2 |
|
| Tyre Specification |
7.00-16 or 7.00R16 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
95 km/h |
|
| Paint |
Automative metallic paint |
|
| Superstructure | Cage Rated Capacity |
200 kg |

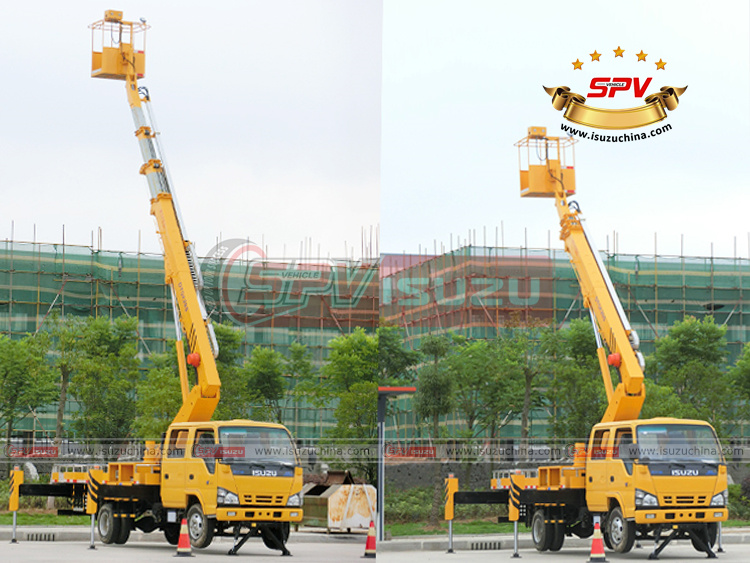

| Working Height |
18m - 20 m |
|
| Beam |
The beam is articulated & telescopic extension type, hydraulic actuated and controlled | |
| Slewing |
Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second. |
|
| Control |
Control both on the ground and remote control in cage |
|
| Safety Device | Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump |
|
| Leveling System | Hydraulic stabilizer to level the vehicle on uneven ground |
|
| Optional | Insulated cage; Wireless remote control system | |
