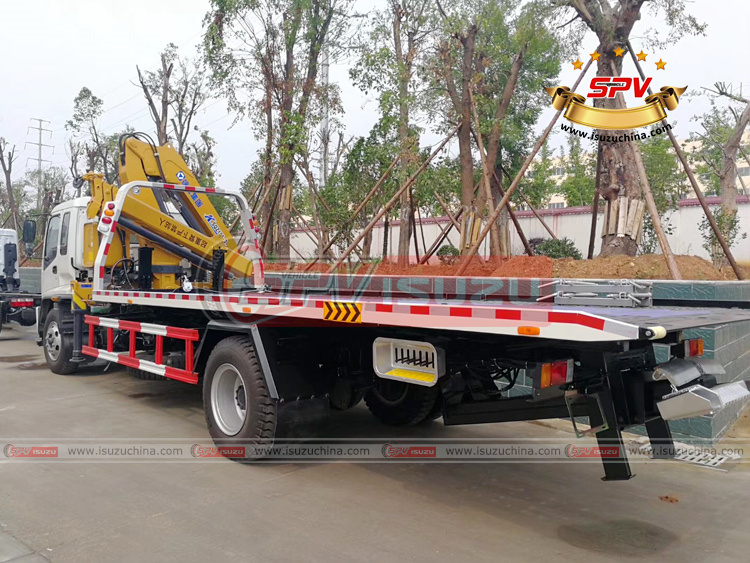

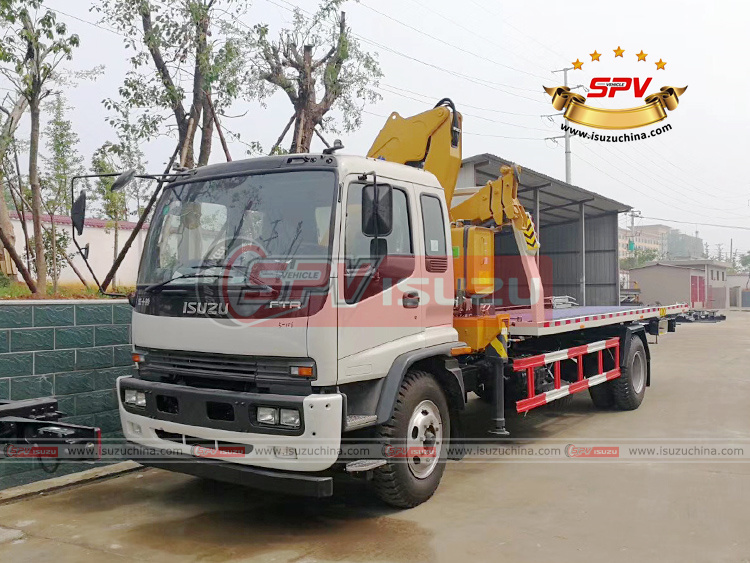

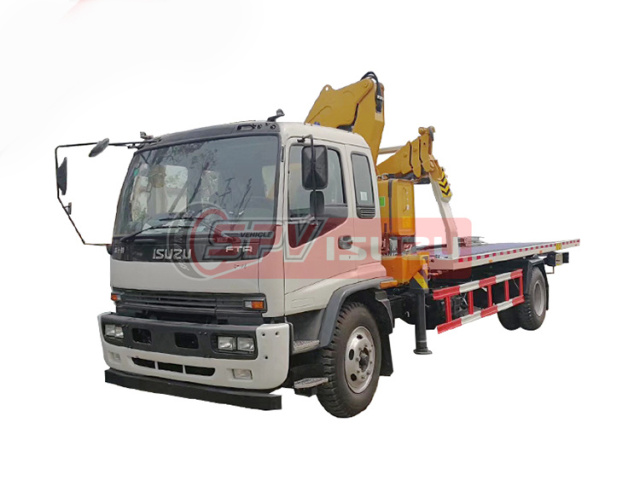

| Road Wrecker With Crane ISUZU ( 5 tons recovery tow truck ) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9000 * 2500 * 3500 mm | |
| GVW / Kerb Weight | 16,000 kg / 9,000 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1 - TCG40 | |
| Power | 190 Ps (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| No. of Axles | 2 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Towing Type | Slidebed with wheel-lift |
| Flatbed Payload Capacity |
5 Tons |
|
| Flatbed Length |
6 meters |
|
| Towing capacity | 5 Tons | |
| Crane Capacity | 2 Tons | |
| All other standard accessories: Binding belt, auxiliary sliding board, spinning cylinder, L-type fork, tyre cover…… | ||
| Optional | ** LED alarm lamp is optional. ** Crane could be installed on flatbed wrecker. |
|
