Function:
Platform lift truck (also called aerial working platform, truck mounted manlift, aerial platform trucks, aerial boom lift truck, lifting platform truck, truck manlift, telescopic aerial truck, articulated telescopic aerial truck, articulated boom lift, articulated basket picker bucket truck,manlift truck etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, fruit picker lift in farm, cleaning/setting other high aerial works.
SPV ISUZUCHINA aerial beam lift trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m, 26-28 mInsulated cage is optional.
Features:
---- The working cage can be made of steel structure or reinforced fiberglass.
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.
Specitfication:
|
Platform Lift Truck ISUZU GIGA (16 M)
|
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
ISUZU |
| Overall Dimension |
9900 x 2500 x 4200 mm |
| GVW / Kerb Weight |
21,000 kg / 11,000 kg |
| Cab |
Cab Capacity |
2 persons allowed |
| Air Conditioner |
With air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine |
| Power |
380 Ps (279 KW) |
Displacement
|
9839 ml
|
Emission Standard
|
Euro V
|
| Chassis |
Drive Type
|
4X2, left hand drive
|
Transmission
|
ISUZU gear box, 6 speed forward, 1 reverse
|
No. of Axles
|
2
|
Tyre Specification
|
315/80R22.5 |
| Tyre Number |
6 tyres and 1 spare tyre
|
Max Speed
|
100 km/h
|
Paint
|
Automative metallic paint
|
| Superstructure |
Cage Rated Capacity
|
200 kg capacity, anti-slip floor
|
Working Height
|
16 M
|
Beam
|
|
Slewing
|
360° continuous rotation with base turntable
|
Control
|
Control both on the ground and in the cage
|
Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
|
Emergency stop switches at base and operator’s cage.
|
| Optional |
Insulated cage; Wireless remote control system |

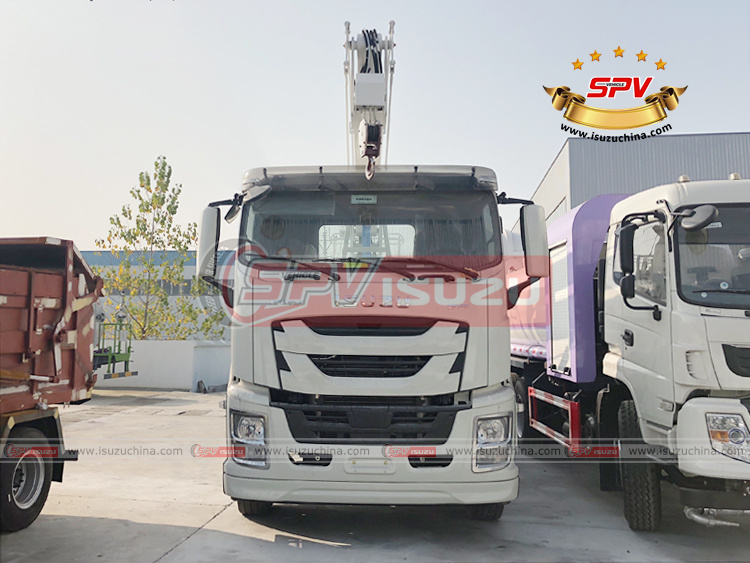

Aerial Work Platform Truck ISUZU - Front Side View

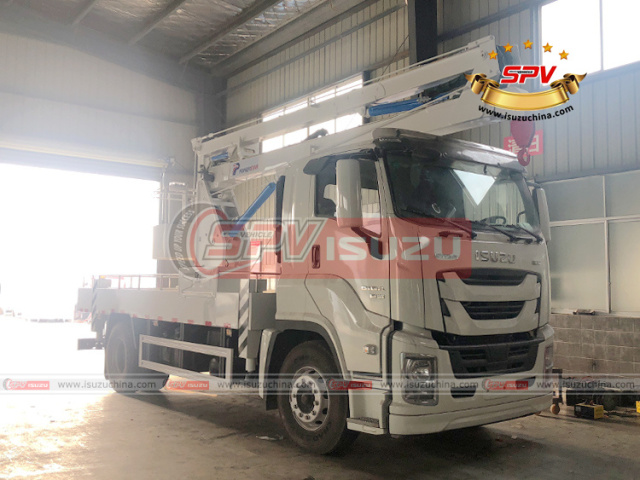

Platform Lift Truck ISUZU GIGA - Left Front Side View

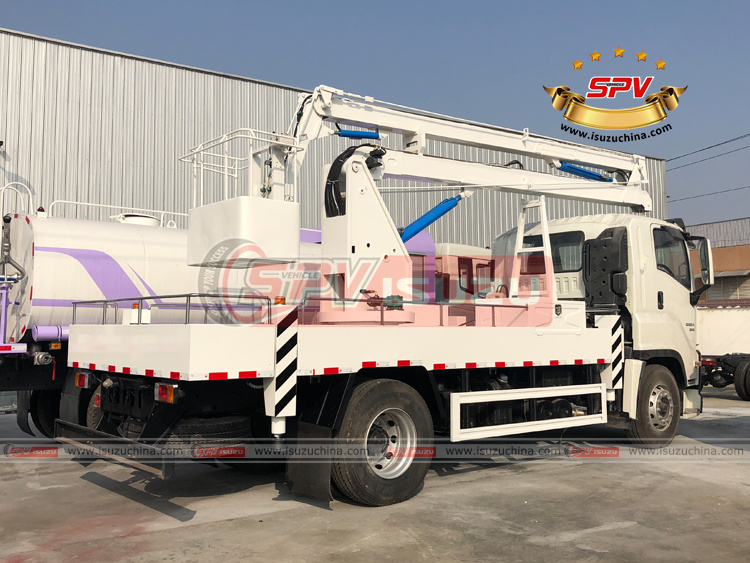

ISUZU Heavy-duty Platform Lift Truck - Left Back Side View

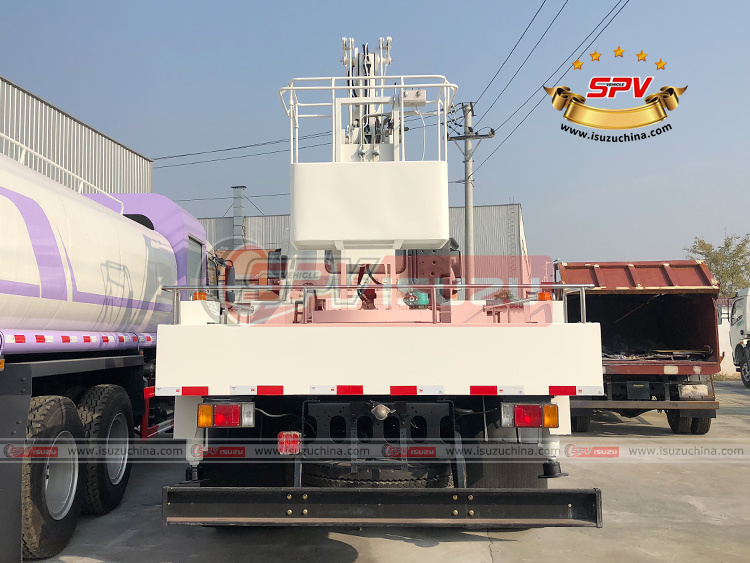

Truck Mounted Aerial Work Platform ISUZU - Rear Side View
