| Firefighter Truck ISUZU GIGA (12,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU · GIGA | |
| Overall Dimension | 11200 * 2550 * 3890 mm | |
| GVW / Kerb Weight | 25,000 kg / 15,800 kg | |
| Cab | Cab Capacity | 2+4 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 6UZ1-TCG40 | |
| Power | 350 Ps (257 KW) | |
| Displacement |
9839 ml |
|
| Emission Standard |
Euro IV |
|
| Chassis | Drive Type |
6X4, left hand drive |
| Transmission |
8-speed forward, 2 reverse |
|
| No. of Axles |
3 |
|
| Tyre Specification |
12R22.5 18PR |
|
| Tyre Number |
10 tyres and 1 spare tyre |
|
| Max Speed |
90 km/h |
|
| Paint |
Metallic paint |
|
| Superstructure |
Water Capacity |
10,000 Litres ( About 2,640 gallons) |
| Foam Capacity |
2,000 litres( About 500 gallons) |
|
| Tank Material |
water tank: Carbon steel foam tank: stainless steel |
|
| Fire Pump |
Flow speed:60 L/s Pressure:1.0M Pa |
|
| Fire Cannon |
Flow speed:48 L/s |
|
| Shot |
Water ≥ 60 m Foam ≥ 55 m |
|
| Suction Head |
6 m |
|
| Hose |
High quality, wire strengthened hose, with cooper wire, anti-static |
|
| A series of fire implement tools: suction hose, intake screen, water segregator, siamese (water combiner), fire hose, hose bandage, etc........Details as per below accessory list. |
||
| Optional | Aluminium Alloy Extendable Ladder 9M - 12M, Storz Coupling, British Coupling, etc...... | |

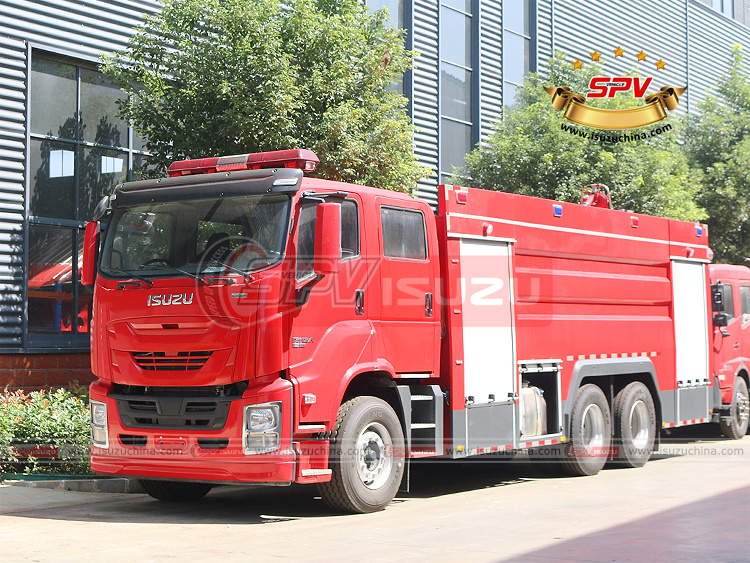

ISUZU GIGA 12,000 Litres Firefighter Truck - Left Front Side View

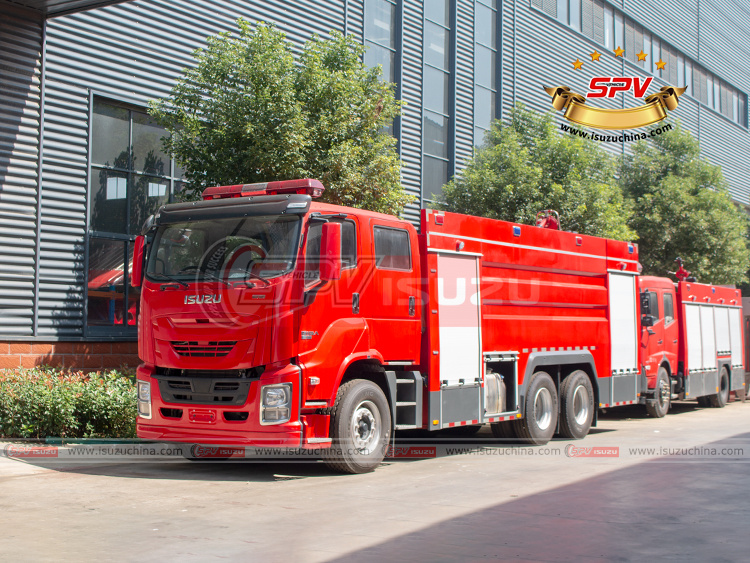

ISUZU GIGA 12,000 Litres Fire and Rescue Truck - Left Front Side View-2

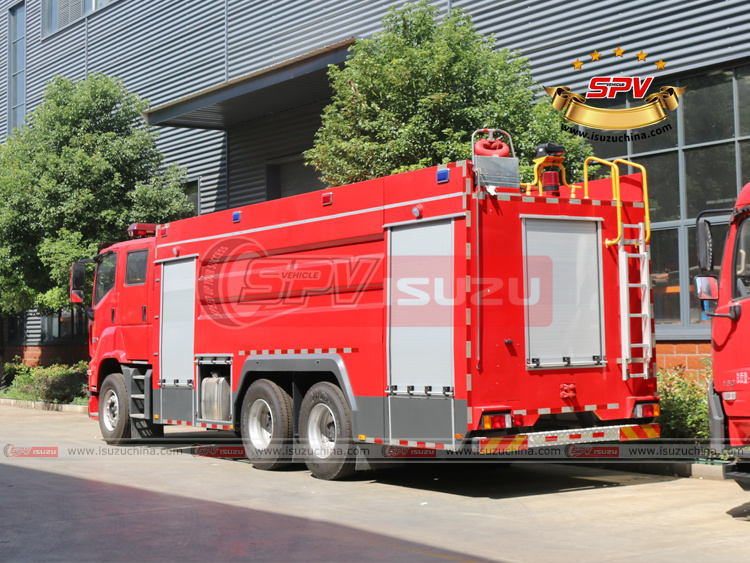

ISUZU GIGA 12,000 Litres Water and Foam Fire Truck - Left Back Side View

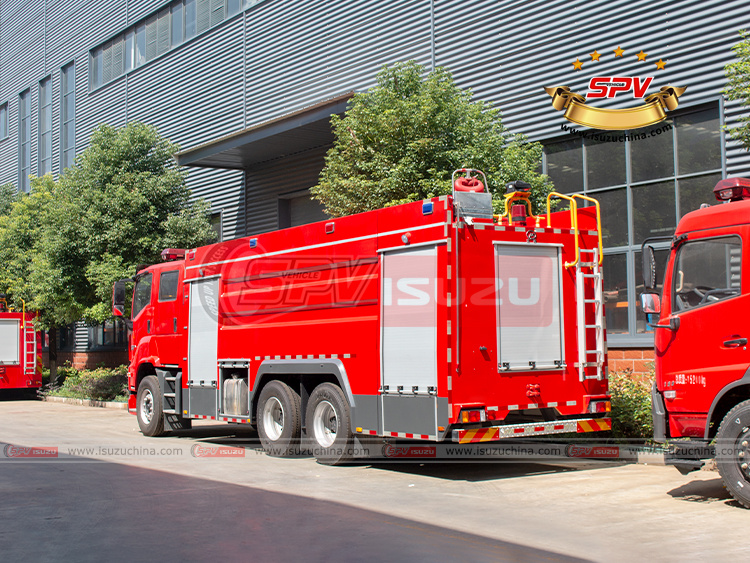

ISUZU GIGA 12,000 Litres Fire Fighting Truck - Left Back Side View-2
