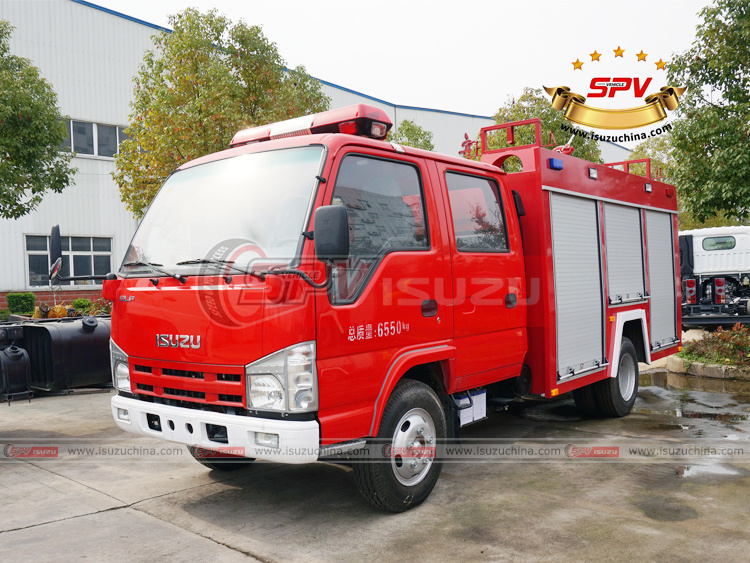

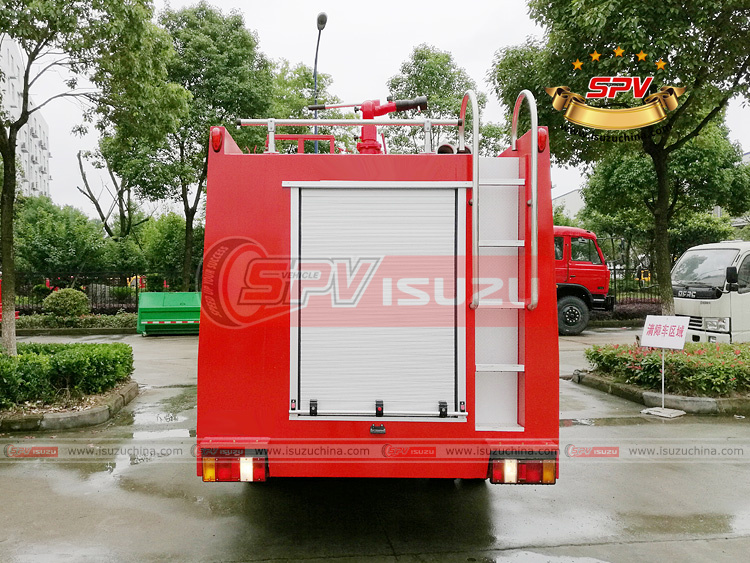

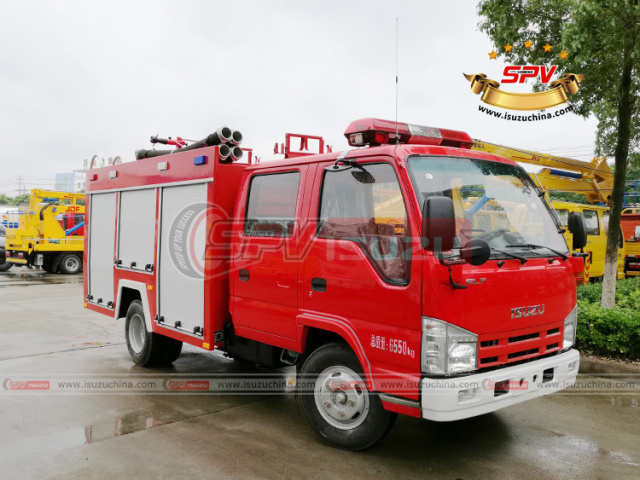

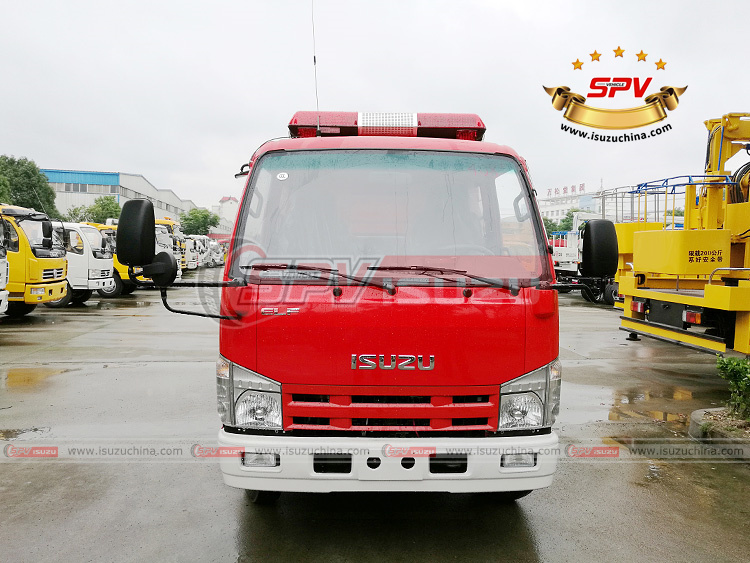

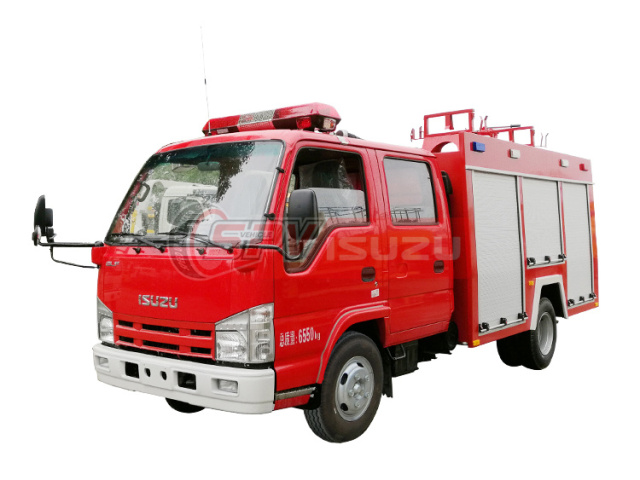

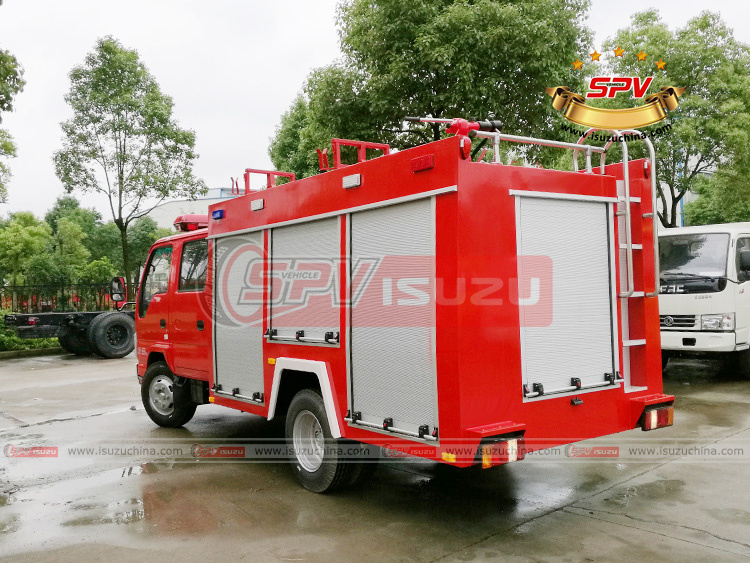

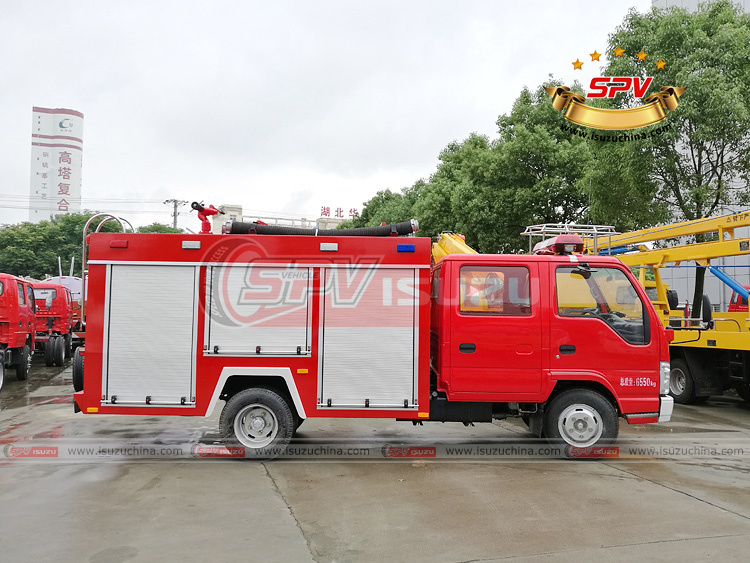

| Fire Rescue Truck ISUZU (2,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6200 * 2000 * 2800 mm | |
| GVW / Kerb Weight | 6,500 kg / 4,100 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 98 Ps (72 KW) | |
| Displacement |
2771 ml |
|
| Emission Standard |
Euro IV |
|
| Chassis | Drive Type |
4X2, left hand or right drive |
| Transmission |
ISUZU gearbox, no overhaul within 500,000km |
|
| No. of Axles |
2 |
|
| Tyre Specification |
7.00-15 |
|
| Tyre Number |
6 tyres and 1 spare tyre |
|
| Max Speed |
100 km/h |
|
| Paint |
Metallic paint |
|
| Superstructure |
Water Capacity |
2,000 Litres (About 500 gallons) |
| Foam Capacity |
None |
|
| Tank Material |
Carbon steel |
|

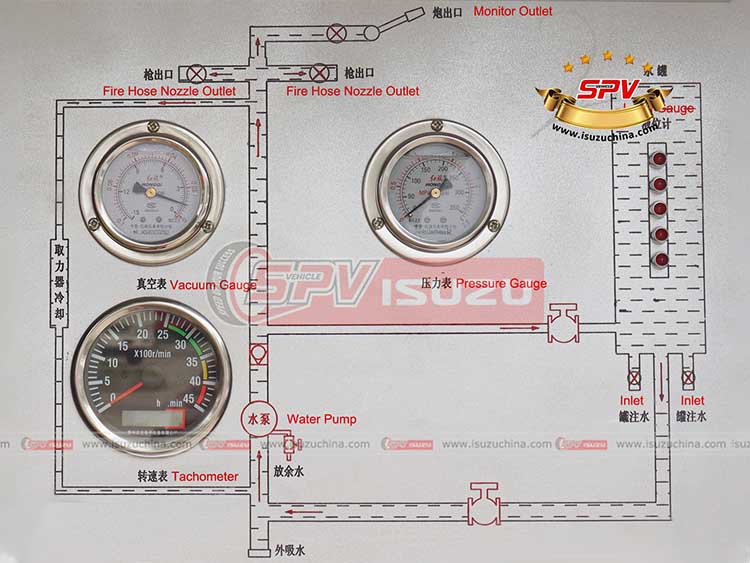

| Fire Pump |
Flow speed:20L/s Pressure:1.0M Pa |
|
| Fire Cannon |
Flow speed:20 L/s |
|
| Shot |
Water ≥ 48 m |
|
| Suction Head |
6 m |
|
| Hose |
High quality, wire strengthened hose, with cooper wire, anti-static |
|
| A series of fire implement tools: suction hose, intake screen, water segregator, siamese (water combiner), fire hose, hose bandage, etc........Details as per below accessory list. |
||
| Optional | Aluminium Alloy Extendable Ladder 9M - 12M, Storz Coupling, British Coupling, etc...... | |
