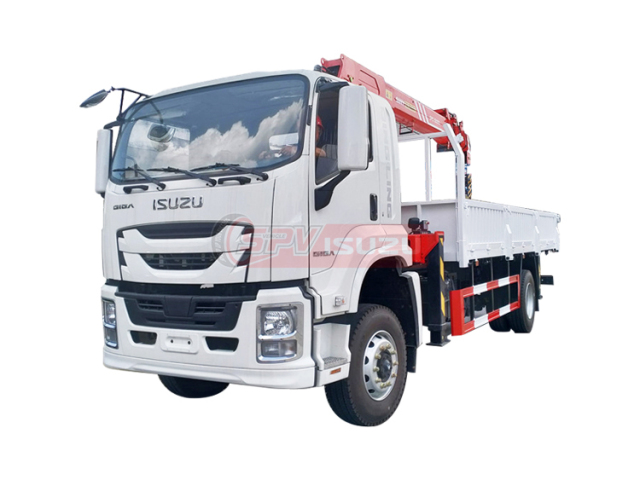

| Crane Truck ISUZU GIGA ( 6 tons crane truck ) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 9390 * 2550 * 3480 mm | |
| GVW / Kerb Weight | 18,000 kg / 10,100 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 205 Hp (150 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | Manual, 6-speed front, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 295/80R22.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cargo Box Dimension | 6000 X 2400 X 900 mm |
| Crane Brand | XCMG | |
| Max Lifting Capacity | 5000 kg | |
| Lifting Capacity @ Working Radius |
5000 kg @ 2.10 m |
|
| Max. Lifting Moment |
105 T.M |
|
| Max. Lifting Height |
12.5 m |
|
| Max. Working Radius |
11.2 m |
|
| Slewing Angle |
360°all rotation |
|
| All other standard accessories: Tool kit, English manual | ||
| Optional | ** Hydraulic tipper box is optional. ** Box thickness according to requirement. ** Box height could be nominated. |
|

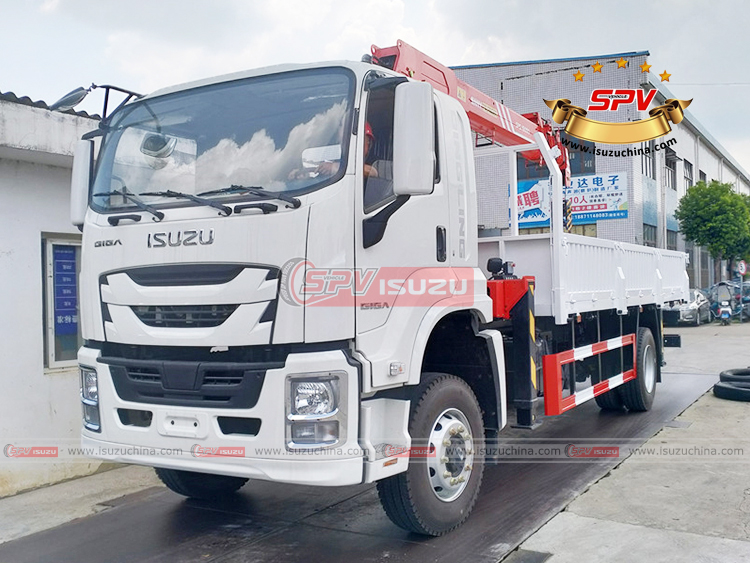

ISUZU GIAGA Cargo Crane Truck - Left Front Side View
