Function:
Closed van truck (also called corrugated cargo truck, van truck, corrugated box vehicle, cargo truck, cargo van, box van, bob truck, box truck, cube truck, cargo van,delivery truck, dry van truck, dry box truck, delivery cargo truck, ISUZU truck, dropside truck, closed truck) is used to transport cargo with closed box. It is very normal and important transport truck.
The material used for van truck body could be corrugated steel, color steel plate, fiberglass, aluminum…
By adding cooling system and polyurethane insulation layer, van truck could be refrigeration truck and carry cargo or food that need be in low temperature.
According to the requirements, it could be single door at rear or side, or double door.
Features:
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- Prolonged service life
Specitfication:

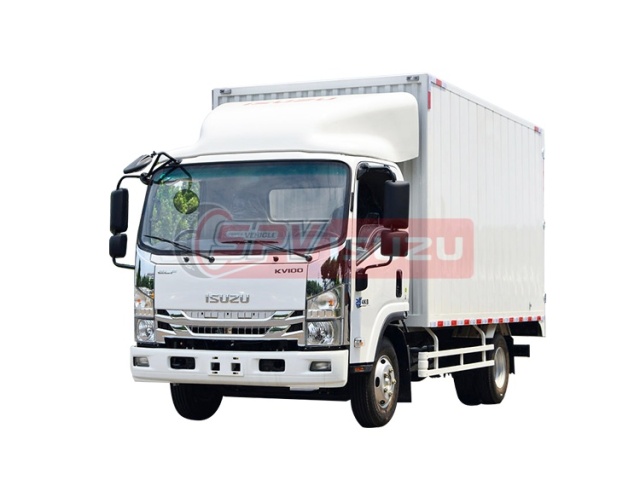

Closed Van Truck ISUZU KV100
( 4 tons box truck )
|
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
ISUZU |
| Overall Dimension |
5995 * 2200 * 3200 mm |
| GVW / Kerb Weight |
7,300 kg / 2,905 kg |
| Cab |
Cab Capacity |
3 persons allowed |
| Air Conditioner |
W/ air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine |
| Power |
131 Hp (96 KW) |
| Displacement |
2499 ml |
| Emission Standard |
Euro VI |
| Chassis |
Drive Type |
4X2, left hand drive |
| Transmission |
Manual, 6 forward,1 reverse |
| No. of Axles |
2 |
| Tyre Specification |
7.00R16 LT 8PR |
| Tyre Number |
6 tyres and 1 spare tyre |
| Max Speed |
115 km/h |
| Paint |
Metallic paint |
| Superstructure |
Box Capacity |
4 Tons |
| Box Material |
Corrugated steel |
| Dimension of Box |
4150 x 2100 x 2150 mm |
| All standard accessories: tool kit, English Manual…… |
| Optional |
** Tank material could be color steel plate, fiberglass, aluminum…
** Cooling system and polyurethane insulation layer.
|

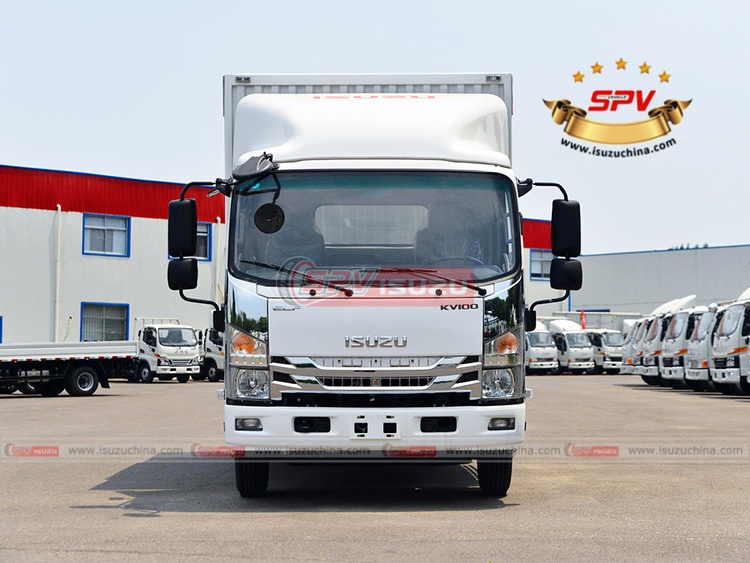

Cargo Transport Van Truck - Front Side

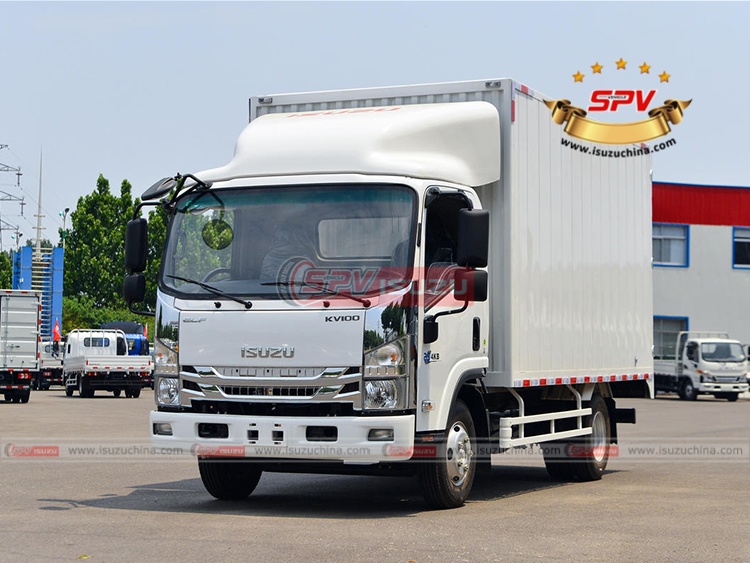

Bob Truck ISUZU KV100 - Front Left Side

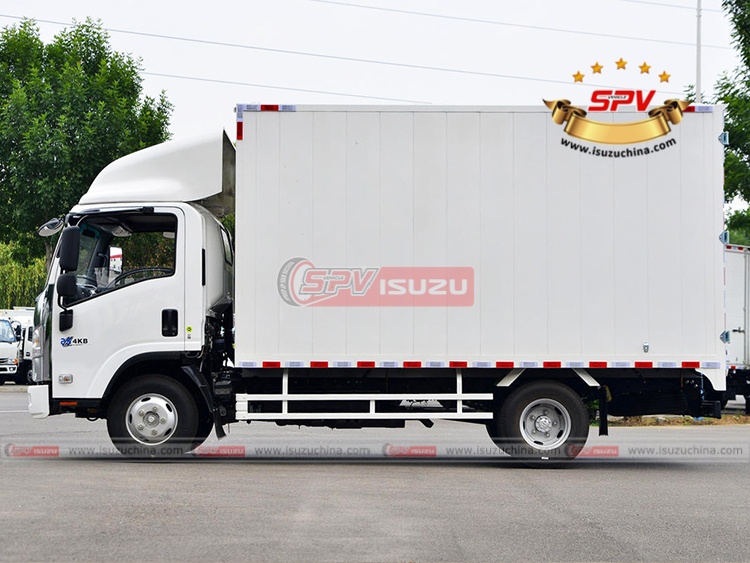

ISUZU KV100 Commerial Truck - Left Side

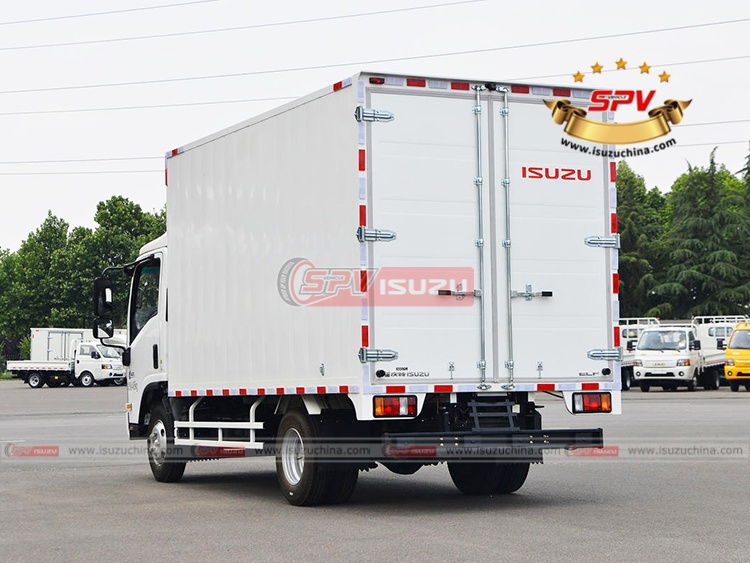

ISUZU Van Truck - Rear Left Side

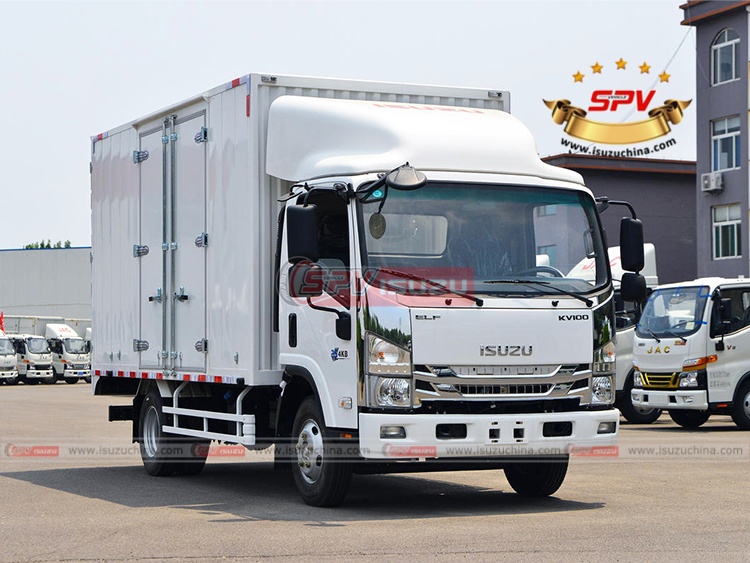

ISUZU KV100 Dropside Cargo Truck - Front Right Side
ISUZU KV100 Dropside Van Truck - Right Side

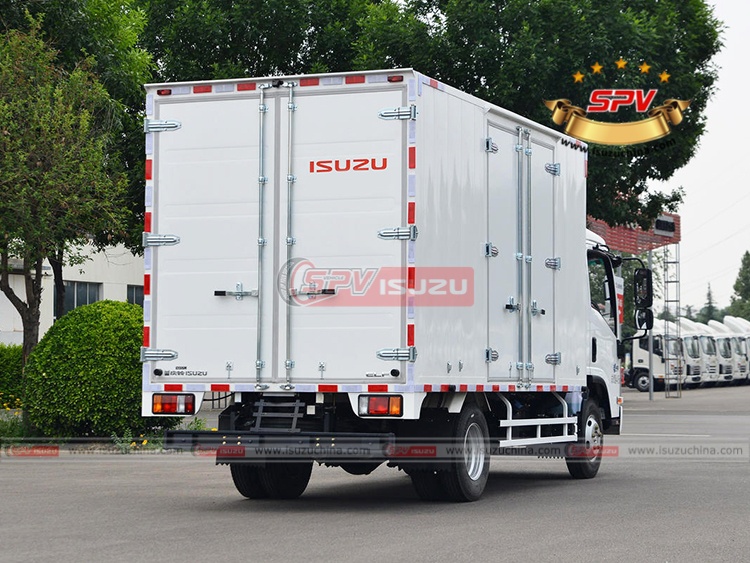

ISUZU KV100 Box Cargo Truck - Rear Right Side

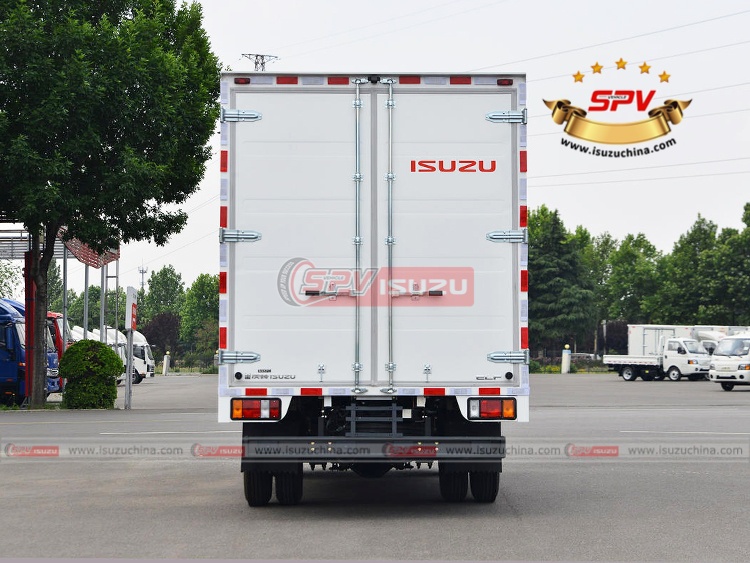

ISUZU KV100 Rearside Van Truck - Rear Side
