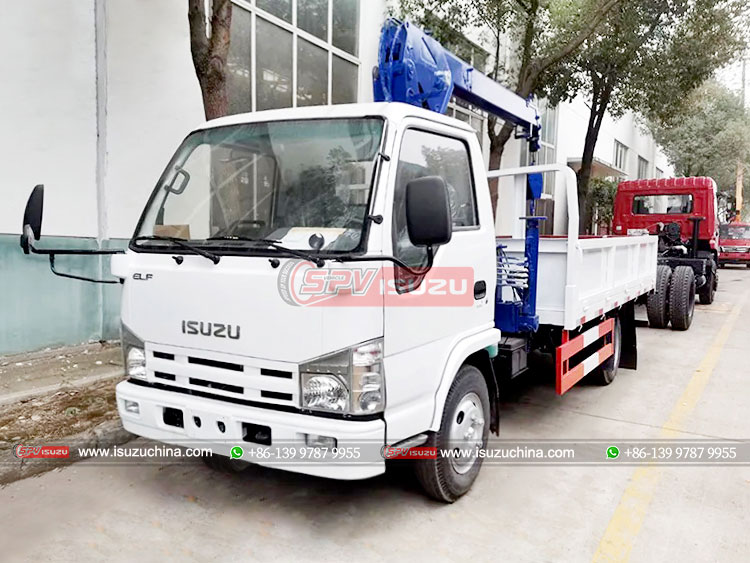

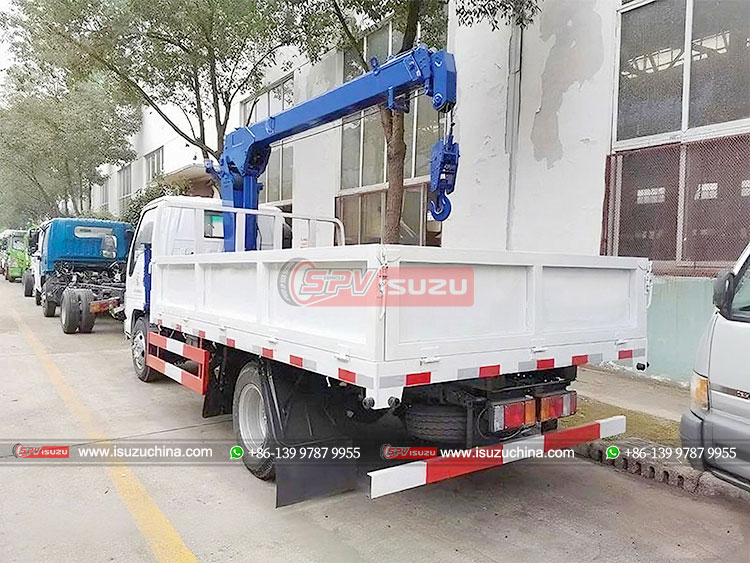

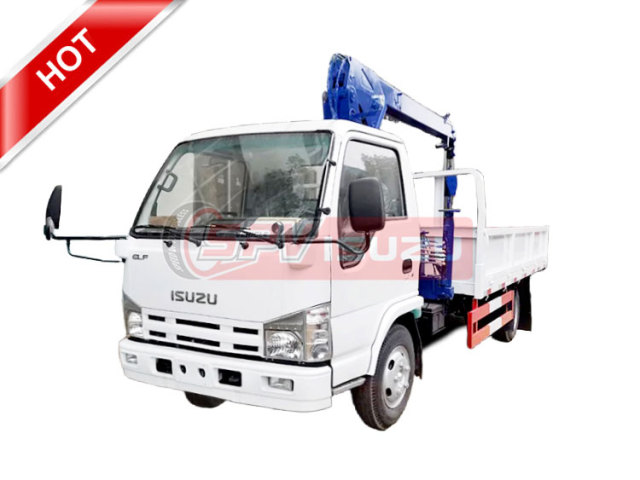

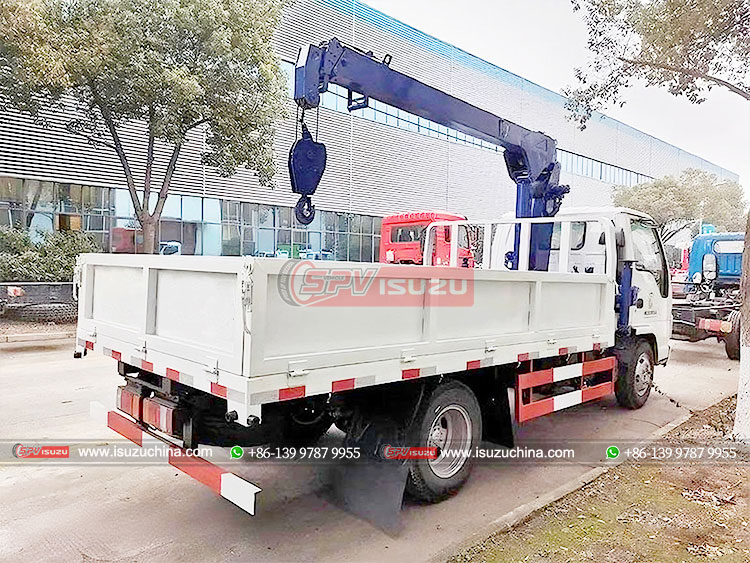

Boom Crane Truck ISUZU 100P

PRODUCT DETAILS

Function:
Boom crane truck (also called cargo truck with crane, ISUZU unic crane, cargo truck crane, truck mounted crane, ISUZU crane truck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, ISUZU boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Features:
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.

Specitfication:

Boom Crane Truck ISUZU 100P ( 3.2 Tons Crane Truck )
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	5995 * 1950 * 2820 mm
	GVW / Kerb Weight	4,495 kg / 2,100 kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	W/ air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	98 Hp (72 KW)
	Displacement	2771 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	Manual, 5-speed front, 1 reverse
	No. of Axles	2
	Tyre Specification	7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Cargo Box Dimension	3650 X 1900 X 450 mm
	Crane Brand	XCMG
	Max Lifting Capacity	3.0T
	Lifting Capacity @ Working Radius	430 KG @ 7.5 m
	Max. Lifting Torque	8.8 m
	Max. Lifting Height	12.5 m
	Max. Working Radius	7.5 m
	Slewing Angle	360°all rotation
	All other standard accessories: Tool kit, English manual
Optional	Hydraulic tipper box is optional. Box thickness according to requirement. ** Box height could be nominated.
