Function:
Automatic scissors lift truck (also called scissors lift platform truck, truck mounted scissors lift, lifting platform truck, scissors lift aerial truck, scissors lift aerial working truck, scissors lift working platform truck, scissors lift platform vehicle, aerial trucks, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, fruit picker lift in farm, cleaning/setting other high aerial works.
SPV ISUZUCHINA scissors lift platform trucks are available of 6m-8m, 8m-12m, 14m-16m, mInsulated cage is optional.
Features:
---- ISUZU chassis ensures perfect driving performance;---- ISUZU engine, super powerful; reliable performance, no overhaul within 500,000 km;---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);---- Working cage can rotate 90 degree in left and right;---- 4pcs outriggers and front support improve operation stability and safety;---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;---- Wireless remote control system is available.
Specitfication:
|

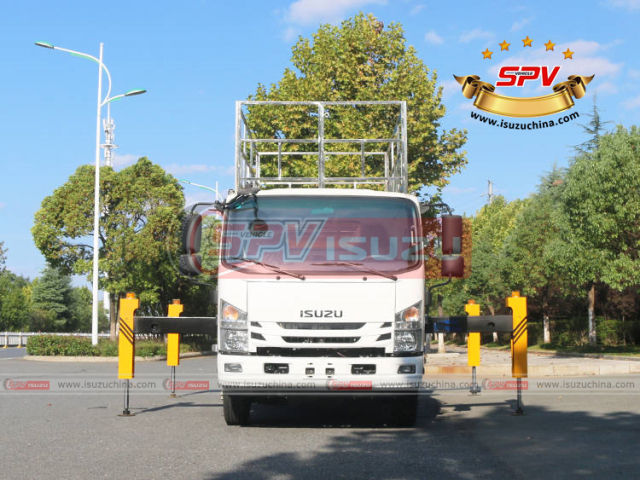

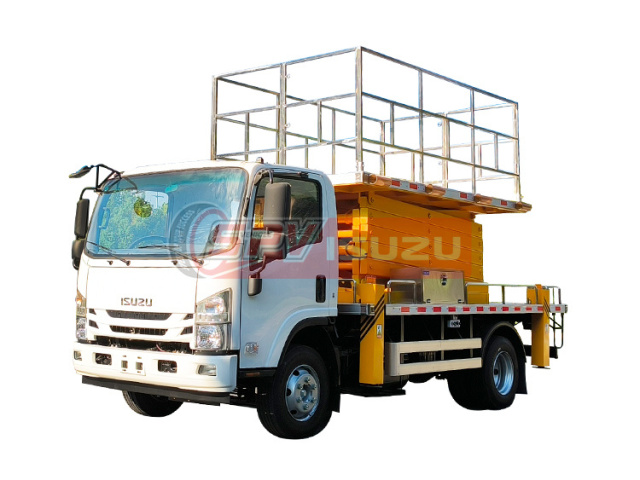

Scissors Lift Aerial Truck ISUZU
(9M, Automatic Gearbox)
|
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
ISUZU |
| Overall Dimension |
6080 x 2310 x 2470 mm |
| GVW / Kerb Weight |
10,550 kg / 6,290 kg |

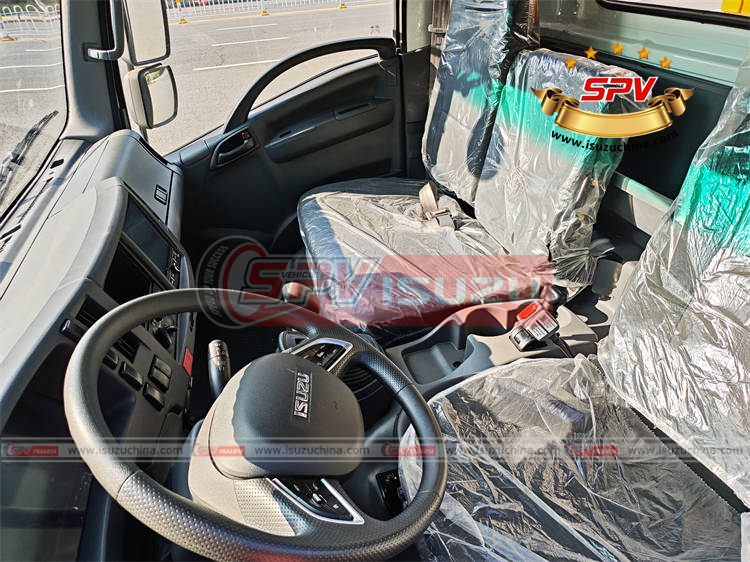

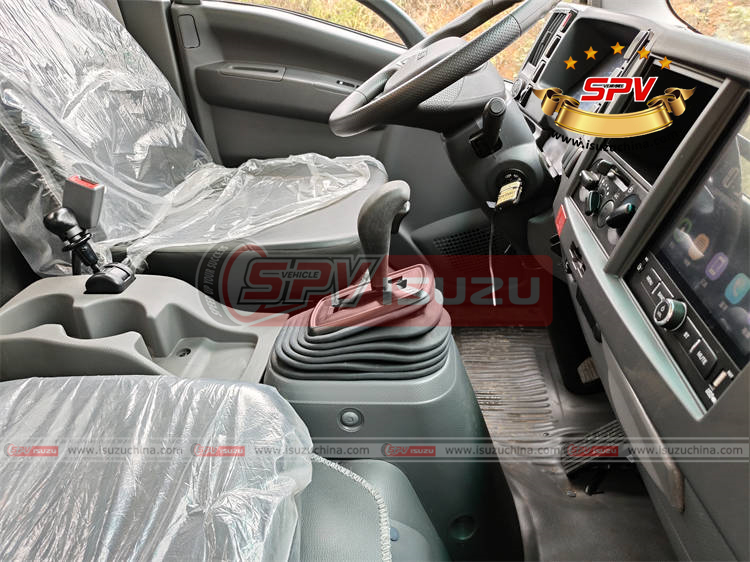

| Cab |
Cab Capacity |
2 persons allowed |

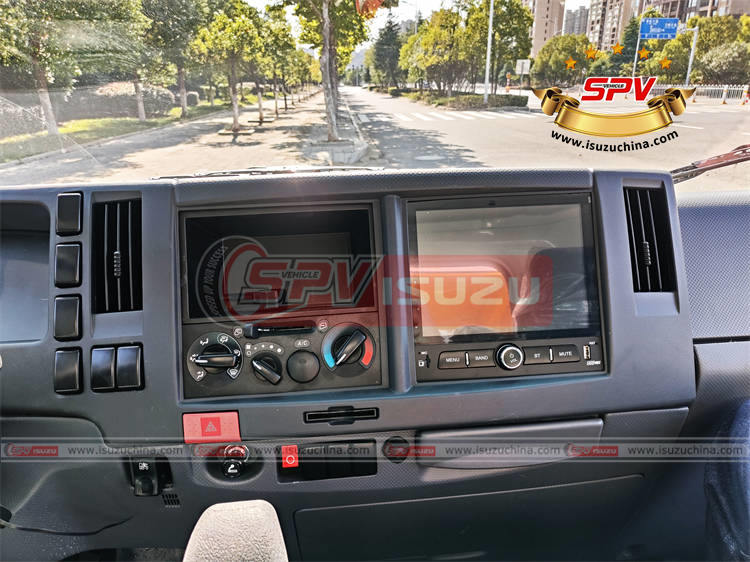

| Air Conditioner |
With air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine, 4KH1-TCG40 |
| Power |
120Ps (88KW) |
Displacement
|
2999 ml
|
Emission Standard
|
Euro IV
|
| Chassis |
Drive Type
|
4X2, left hand drive
|
Transmission
|
ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
|
No. of Axles
|
2
|
Tyre Specification
|
7.00-16
|
Tyre Number
|
6 tyres and 1 spare tyre
|
Max Speed
|
95 km/h
|
Paint
|
Automative metallic paint
|
| Superstructure |
Cage Rated Capacity
|
500 kg
|

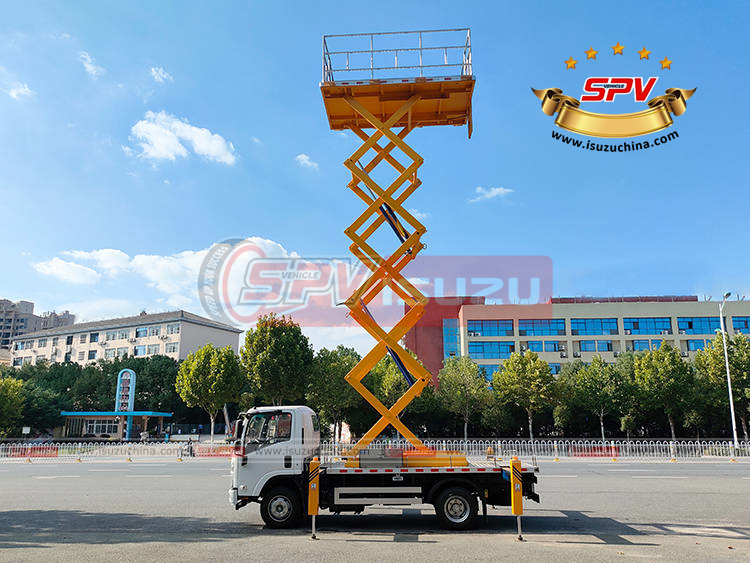

Working Height
|
9 m
|
Control
|
Controled by batteries
|
| Safety Device |
Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump |
| Leveling System |
Hydraulic stabilizer to level the vehicle on uneven ground |
| Optional |
Insulated cage; Wireless remote control system |
