Function:
Aerial beam lift truck (also called aerial platform trucks, aerial boom lift truck, lifting platform truck, truck manlift, teles telescopic aerial truck, telescopic working platform, articulated telescopic aerial truck, articulated boom lift, articulated basket picker bucket truck,manlift truck etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, fruit picker lift in farm, cleaning/setting other high aerial works.
SPV ISUZUCHINA aerial beam lift trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m, 26-28 mInsulated cage is optional.
Features:
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- The working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Safty Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc;
---- Hoist hook with cables can be equipped for the function of a crane;
---- Cargo box is available to transport goods.
Specitfication:
|
Areial Beam Lift Truck ISUZU (16 M)
|
| General |
Vehicle Brand |
SPV |
| Chassis Brand |
ISUZU |
| Overall Dimension |
7600 x 2000 x 3150 mm |
| GVW / Kerb Weight |
6,800 kg / 5,650 kg |
| Cab |
Cab Capacity |
2 +3 persons allowed |
| Air Conditioner |
With air conditioner |
| Engine |
Fuel Type |
Diesel |
| Engine Brand |
ISUZU engine, 4KH1-TCG40 |
| Power |
120 Ps (88KW) |
Displacement
|
2999 ml
|
Emission Standard
|
Euro IV
|
| Chassis |
Drive Type
|
4X2, left hand drive
|
Transmission
|
ISUZU MSB transmission, 5-forward gears & 1 reverse, no overhaul within 500,000km
|
No. of Axles
|
2
|
Tyre Specification
|
7.00R16
|
Tyre Number
|
6 tyres and 1 spare tyre
|
Max Speed
|
95 km/h
|
Paint
|
Automative metallic paint
|
| Superstructure |
Cage Rated Capacity
|
200 kg
|
Working Height
|
16 m
|
Outriggers
|
4pcs, H-type; Hydraulically extend and retract |
Slewing
|
360° continuous rotation with base turntable
|
Control
|
Control both on the ground and in the cage
|
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. |
| Emergency stop switches at base and operator’s cage. |
| Optional |
Insulated cage; Cargo box; Hoist hook with cables can be equipped for the function of a crane. |

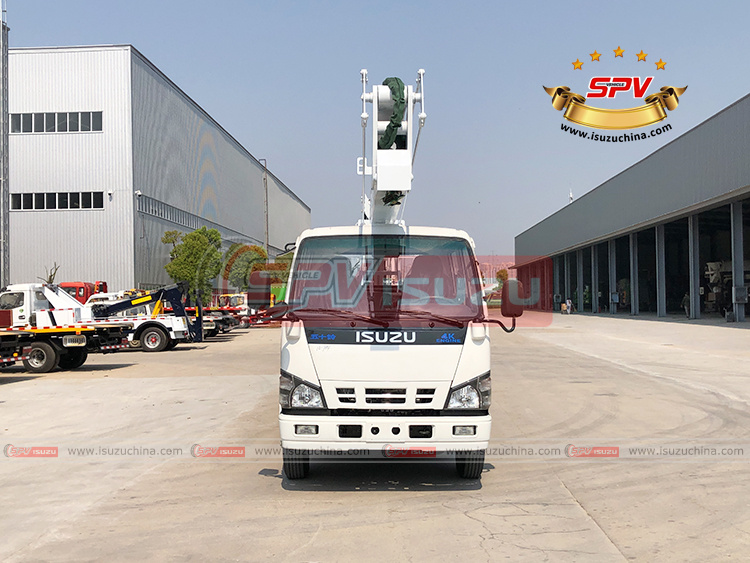

Truck Mounted Manlift ISUZU - Front Side View

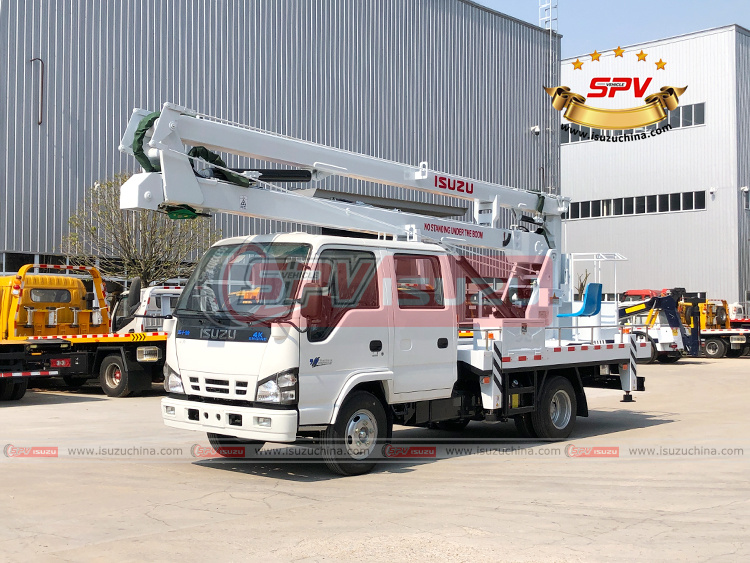

Aerial Beam Lift Truck ISUZU - Left Front Side View

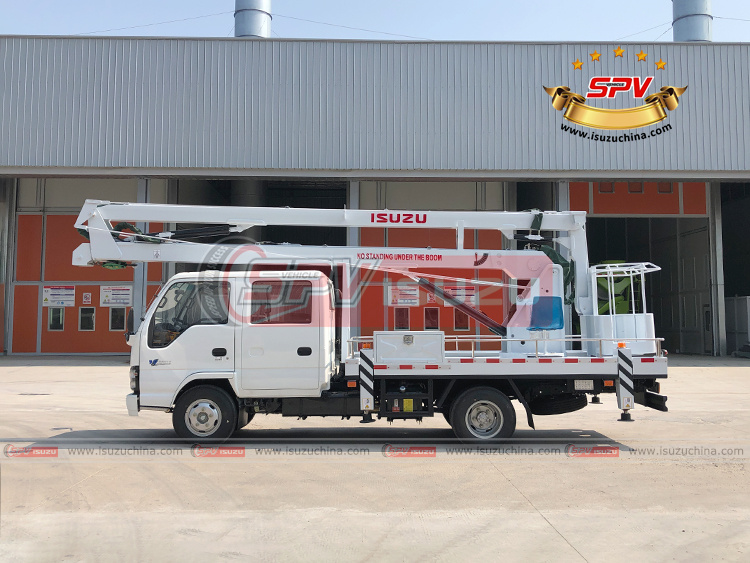

16M Aerial Work Platform Truck ISUZU - Left Side View

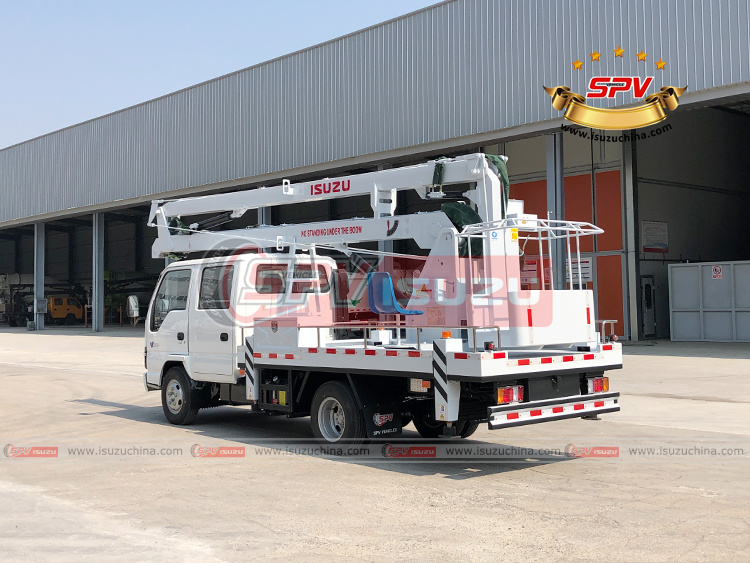

Aerial Manlift Truck ISUZU - Left Back Side View
